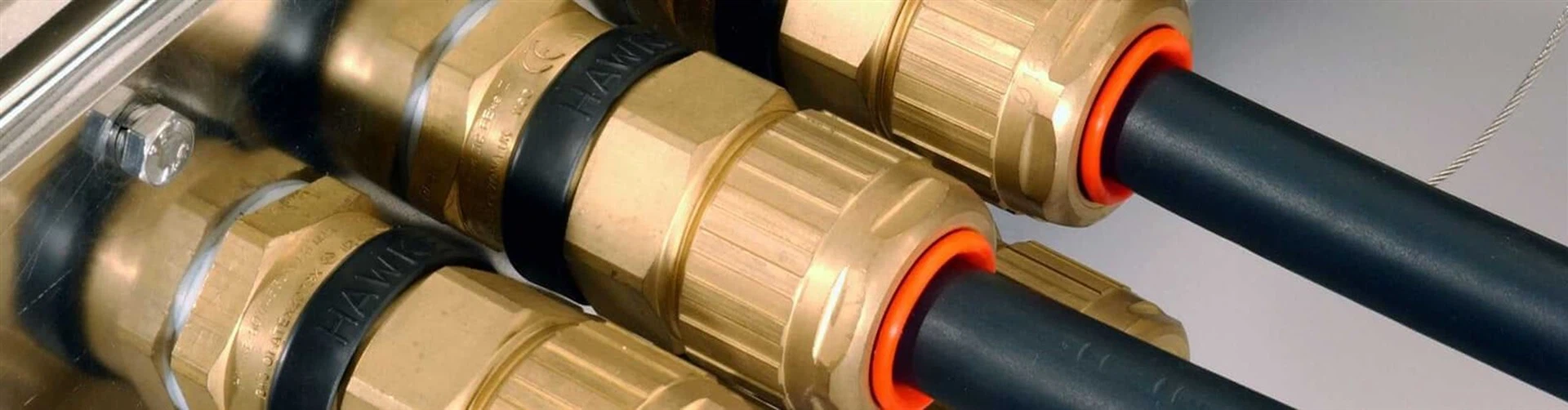

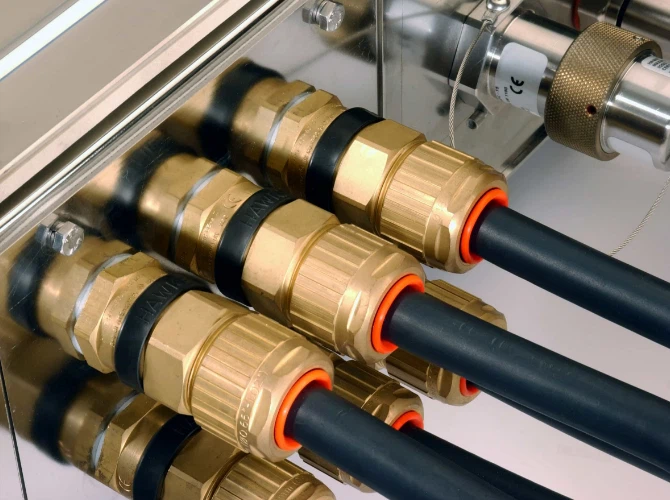

Nickel Plated Brass Cable Gland



Purpose and Design: The Nickel Plated Brass Cable Gland serves as a crucial component tailored for the electrical and communications sectors, offering a secure and reliable means to connect and safeguard cables.



Material Composition: Primarily constructed from brass and enhanced with nickel plating, this product boasts improved resistance to corrosion and wear, ensuring longevity and durability in challenging environments.



Aesthetic and Protective Qualities: The application of nickel plating not only contributes to an appealing visual appearance but also serves as a protective layer, preventing oxidation and corrosion of the brass. This protective feature ensures stability across various climatic conditions.



Electrical Performance: Leveraging the inherent properties of brass, the cable gland exhibits excellent electrical and thermal conductivity, making it a robust choice for electrical connections. The threaded design enhances secure connections, facilitating easy installation and removal.



Environmental Considerations: The sealing head's design prioritizes waterproofing and dustproofing, safeguarding cables from external environmental factors during operation.



Quality Assurance: Subjected to rigorous quality control measures, the nickel-plated brass cable glands comply with international standards and specifications. This commitment ensures their safety and reliability in diverse industrial and commercial applications.

Reliable Solution: Overall, the product emerges as a trustworthy solution for cable connection protection, pr



Instruction:

1.Waterproof cable gland is the matching product of cable, mainly using in the distribution cabinet and distribution box.

2.Gland can lock the cable, the other end of it can plug into to equipment cabinet, screw threads available upon request.

3.The port is on the inner screw threads of electric equipments. It can clamp cables effectively to be waterproof.

4.According to installation materials, it can be divided into pyrocondensation type (the most common one), dry package type, epoxy resin filling type and contraction type.

5.According to core materials, it can be divided into copper core power cable and aluminum core power cable.

6.It can make wiring connecting and keep cable seal, and assure the cable gland can be in insulation protection, so that make it safe to work.

7.If the seal is not so good, it will lose oil and make oil-impregnated paper dry, and the humidity will immerse to the inner of cable to degrade the insulation ability.



Materials:	304, 316 Stainless Steel or Brass with nickel planted
Product Name:	CW IECE ATEX Brass Nickel cable glands for Armored cables
Sealing materials:	Silicon rubber,Neoprene,Teflon,PA6
Explosion mark:	ExdIIC Gb IP66/ ExeII Gb IP66
Fireproof grade:	V0(UL94)
Protection level:	IP68 (screwed-on the cap) With inner displacement seal With quick installation,safety,reliability,and other characteristics of good protection; It is suitable for clamping and fixing various types of armored cables. Environment condition: IIA, IIB, IIC explosive environment. It is widely used in petroleum, chemical, warehouse, food, pharmaceutical,military and other electrical cable fixing and sealing.
Applicable cable:	Braided cable, steel wire armoured cable, steel tape armoured cable, marine marshalling armoured cable.
Usage:	Cable gland CW Single compression
Ambient temperature:	Static from -60℃ to 100℃,short up to 120℃ Dynamic from -20℃ to 80℃,short up to 100℃ without halide.







PACKING

1. Common packing: Polybag+Label+Export Carton

2. Customized packing: Header card packing, Blister with card packing, Double Blister packing, Canister packing, other packing can be supplied according to customers requirement.

Packaging Options：	Description
Header Card Packing：	Customized packaging with header cards for branding.
Blister with Card Packing：	Secure and visually appealing blister packaging.
Double Blister Packing：	Enhanced protection with double-layered blister.
Canister Packing：	Convenient packaging in canisters for easy storage.
Other Customized Packaging Options：	Tailored packaging solutions based on customer needs.





TRADE TERM:

1. Payment term:

1) 30% by TT as deposit before production and the balance by TT before shipment.

2) 30% by TT as deposit before production and the balance by TT against B/L copy.

3) 100% by T/T in advanced with total amount is under $5000.
2. Supply ability: 20ft Container/Month
3. OEM: accept
4. Delivery: •By Courier: 1-2 Working days by special offer
•By Air: 4-7 Working days at appointed airport
•By Sea:20-25 Working days at appointed port



1. Are you a manufacturer?

We're the manufacturer and trader,we have the factory for Wiring Accessories industry for more than for 10 years.

2.How about the quality and warranty?

We have strict quality inspection system from raw material to finished products.

We can send you sample to check quality first and we guarantee the sample quality is the same as the mass production.

3.What's the Minimum Order Quantity (MOQ) ?

Please tell me the details request of what you want,like the item,the size and quantity,i will tell you MOQ once we get it from you.

4.How long about the delivery time after I place an order?

Usually our delivery time is 3-7days after we receive the deposit.

5.What's the terms of payment?

Normally 30% T/T in advance,70% should be paid before shipment.
