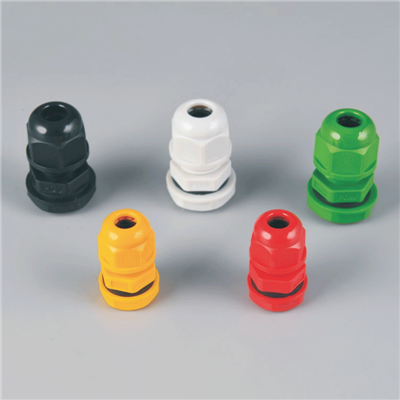

Small Plastic Cable Gland
Small plastic cable gland is a plastic cable gland used to secure cables to electrical equipment. It has the following characteristics: Suitable for smaller cable ranges such as M12 to M63 Lightweight, durable, waterproof and anti-corrosive Protection class IP 67 or IP 68 protects electrical equipment against dust and moisture Use different thread specifications Available in a variety of colors and models, such as split, right-angle, porous or flat
Small plastic cable gland is an accessory for cable entry, mainly used for waterproofing, dustproofing and fixing cables. Here are some key aspects of the quality of this product:
1. Material selection:
High-quality small plastic cable glands are usually made from durable engineering plastics such as polyamide (Nylon) or polypropylene (Polypropylene). These materials offer good durability, chemical resistance, and excellent water and dust resistance.
2. Waterproof and dustproof performance:
The key to product quality lies in its waterproof and dustproof properties. A high-quality small plastic cable gland should have an effective sealing design to ensure that the cable entry is protected from moisture, moisture or dust. The best products are rated IP65, IP66 or higher.
3. Weather resistance:
A good quality small plastic cable gland should have good weather resistance and be able to maintain stability in different environmental conditions. This includes resistance to UV rays, temperature changes and other meteorological factors.
4. Environmental protection:
Small plastic cable glands that meet environmental standards should be non-toxic, harmless, contain no harmful substances, and comply with relevant environmental regulations and standards.
5. Installation convenience:
Product quality is also related to its ease of installation. High-quality, small plastic cable glands are usually simple in design and easy to install without the need for complicated tools.
|
Material: |
PA(NYLON),UL 94V-2 |
|
Hermetic seal: |
NBR,EPDM |
|
Working temperature: |
-40℃ to 100℃ in static state instantaneous heat resistance up to 120℃-20℃ to 80℃ in dynamic state instantaeous heat resistance up to 100℃ |
|
Color: |
Black, Light Grey, can Customize, Multi-Hole can customize. |
|
Thread: |
Metric, PG, NPT, G |
|
Protection: |
IP68-5Bar |
|
Certification: |
SGS CE ROHS IP68 REACH |
Installation Steps
Installation Step 1: Prepare Cables
First, peel off the outer layer of the cable to expose the positive and negative wires inside and separate them. This ensures that the next installation steps will proceed smoothly.
Installation step 2: Assemble PG Gland 16mm accessories
Next, put the PG Gland 16mm nut, sealing ring and gasket on the cable in sequence. Special attention is required during this process to ensure that no parts are missed to ensure the integrity and effectiveness of subsequent installations.
Installation Step 3: Connect Cables to Device
Connect the positive and negative wires of the cable to the corresponding terminals of the electrical equipment and secure them with screws. This step is key to ensuring a solid connection between the cable and the device.
Installation step 4: Fix PG Gland 16mm
Finally, screw the body of the PG Gland 16mm into the PG 16 threaded hole of the electrical device. Then, tighten the nut tightly so that the sealing ring and gasket are tight against the cable and equipment surface, creating an effective waterproof seal. This step ensures the protective performance at the cable entry, prevents the intrusion of moisture and dust, and maintains the reliability of the electrical equipment.
Products Can Be Customized And Packaged As Needed
Common Packing: Polybag+Label+Export Carton
Our standard packaging includes a polybag for secure containment, a labeled description for easy identification, and an export carton for safe transportation. This ensures your products are well-protected and arrive in excellent condition.
Customized Packing Options:
Header Card Packing: Elevate your product presentation with header card packing, adding a professional touch and enabling easy display on retail shelves.
Blister with Card Packing: For enhanced visibility and protection, consider blister with card packing. This option showcases your product while safeguarding it from external elements.
Double Blister Packing: Opt for double blister packing for added durability and protection. This robust packaging solution is ideal for products requiring extra resilience during transit.
Canister Packing: Explore the convenience of canister packing, a practical choice for organized storage and easy access to your products.
Tailored Packaging Solutions:
We understand unique needs arise, and we offer flexibility. Should you have specific packaging requirements beyond our standard and customized options, our team is ready to collaborate and provide tailored solutions to meet your individual preferences and branding objectives. Your satisfaction is our priority, and we aim to deliver products in packaging that aligns seamlessly with your vision and market demands.
TRADE TERM:
1. Payment:L/C, T/T, D/A, D/P, Western Union, Paypal…etc.
2. Supply ability: 20ft Container/Month
3. OEM: accept
4. Delivery: •By Courier: 1-2 Working days by special offer
•By Air: 4-7 Working days at appointed airport
•By Sea:20-25 Working days at appointed port.
Services
Excellent service and first-class after-sale service
• Provide professional sale person to communicate with you before the order
• Provide optimum system solution based on each client's export
• Provide strict check for each part,each process before export.
Phone Number
+8615267115891
jeson@gordon-elec.com
FAQ:
What is a plastic cable gland?
A plastic cable gland is a device used for cable management, providing a secure and sealed entry point for cables. It is typically made of durable plastics and is designed to prevent dust, moisture, and water from entering electrical enclosures.
What are the sizes of cable glands?
Cable glands come in various sizes to accommodate different cable diameters. Common sizes include PG7, PG9, PG13.5, PG16, and PG21. The selection of the size depends on the specific requirements and dimensions of the cables being used.
What is an alternative to cable glands?
One alternative to cable glands is conduit systems. Conduits are protective tubes that encase cables, providing a pathway and protection. Another alternative is cable connectors, which ensure secure connections but may not offer the same level of sealing as cable glands.
What is a nylon cable gland used for?
A nylon cable gland is used for cable entry points where a high level of durability, corrosion resistance, and environmental protection is required. Commonly utilized in various industries, nylon cable glands are suitable for both indoor and outdoor applications, offering reliable sealing against dust and water ingress.
