Self Locking Nylon Cable Ties
Nylon 66 cable ties mde of UL Approved Nylon 66/94V-2,corrosion resistant,well insulation,difficult to aging and strongly endurable.
Gordon – High Quality, Reliable Wiring Accessories Products Supplier
Nylon 66 cable ties mde of UL Approved Nylon 66/94V-2,corrosion resistant,well insulation,difficult to aging and strongly endurable.
Color:Natural cable ties,UV Resistant black cable ties and other colors customized cable ties.
Product description
| Product Name: | UL approved Selflocking nylon cable ties |
| Material: | UL approved Nylon 66, 94V-2, with good tensile strength and insulation, not easy to get aging |
| Tensile strength: | 8Kgs~ 114kgs (18lbs ~ 250lbs ) |
| Length: | 60mm ~ 1200 mm(6 inch ~ 50 inch ) |
| Color: | Natural white ,UV resistant black ,other color are available upon request |
| Flame retardant rating: | UL94 V-2 |
| Operating Temperature: | -40 to 85 dgree C |
| Cuszomized: | Special Heat/Cold resistant ties can be customized uopon your request. |
Tensile Strength:18lbs(8kgs) | ||||

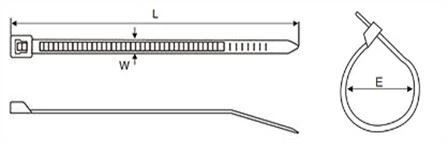

Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-2.5X60 | 2.4" | 60 | 2.5 | 2-11 |
GD-2.5X80 | 3.2" | 80 | 2-16 | |
GD-2.5X100 | 4.0" | 100 | 2-22 | |
GD-2.5X120 | 4.7" | 120 | 2-30 | |
GD-2.5X150 | 6.0" | 150 | 2-35 | |
GD-2.5X160 | 6.3" | 160 | 2-40 | |
GD-2.5X200 | 8.0" | 200 | 3-50 | |
Tensile Strength:40lbs(18kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-3.6X140 | 5.5" | 140 | 3.6 | 3-33 |
GD-3.6X150 | 6.0" | 150 | 3-35 | |
GD-3.6X180 | 7.1" | 180 | 3-42 | |
GD-3.6X200 | 8.0" | 200 | 3-50 | |
GD-3.6X250 | 10" | 250 | 3-65 | |
GD-3.6X280 | 11" | 280 | 3-70 | |
GD-3.6X300 | 12" | 300 | 3-80 | |
GD-3.6X370 | 14.6" | 370 | 3-105 | |
Tensile Strength:50lbs(22kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-4.8X120 | 4.7" | 120 | 4.8 | 3-30 |
GD-4.8X160 | 6.3" | 160 | 3-40 | |
GD-4.8X180 | 7.1" | 180 | 3-42 | |
GD-4.8X190 | 7.5" | 190 | 3-46 | |
GD-4.8X200 | 8.0" | 200 | 3-50 | |
GD-4.8X250 | 10" | 250 | 3-65 | |
GD-4.8X280 | 11" | 280 | 3-70 | |
GD-4.8X300 | 12" | 300 | 3-80 | |
GD-4.8X350 | 14" | 350 | 3-90 | |
GD-4.8X360 | 14.2" | 360 | 3-94 | |
GD-4.8X370 | 14.6" | 370 | 3-98 | |
GD-4.8X380 | 15" | 380 | 3-102 | |
GD-4.8X400 | 16" | 400 | 3-105 | |
GD-4.8X430 | 16.9" | 430 | 3-120 | |
GD-4.8X450 | 17.7" | 450 | 3-130 | |
GD-4.8X500 | 19.7" | 500 | 3-150 | |
Tensile Strength:120lbs(55kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-7.2X150 | 6.0" | 150 | 7.2 | 3-35 |
GD-7.2X200 | 8.0" | 200 | 3-50 | |
GD-7.2X250 | 10" | 250 | 4-65 | |
GD-7.2X280 | 11" | 280 | 4-78 | |
GD-7.2X300 | 12" | 300 | 4-80 | |
GD-7.2X350 | 14" | 350 | 4-90 | |
GD-7.2X370 | 14.6" | 370 | 4-98 | |
GD-7.2X380 | 15" | 380 | 4-100 | |
GD-7.2X400 | 16" | 400 | 4-105 | |
GD-7.2X450 | 18" | 450 | 4-110 | |
GD-7.2X500 | 20" | 500 | 4-150 | |
GD-7.2X530 | 20.9" | 530 | 4-160 | |
GD-7.2X550 | 21.6" | 550 | 4-165 | |
Tensile Strength:175lbs(80kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-9.0X400 | 16" | 400 | 9 | 8-105 |
GD-9.0X450 | 18" | 450 | 8-118 | |
GD-9.0X500 | 20" | 500 | 8-150 | |
GD-9.0X550 | 21.6" | 550 | 8-160 | |
GD-9.0X600 | 23.6" | 600 | 8-170 | |
GD-9.0X650 | 25.6" | 650 | 8-185 | |
GD-9.0X720 | 28.3" | 720 | 10-195 | |
GD-9.0X800 | 31.5" | 800 | 10-230 | |
GD-9.0X900 | 35.5" | 900 | 10-265 | |
GD-9.0X1000 | 29.4" | 1000 | 10-300 | |
GD-9.0X1100 | 43.3" | 1100 | 10-335 | |
GD-9.0X1200 | 47.2" | 1200 | 10-370 | |
Tensile Strength:250lbs(114kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-12X650 | 25.6" | 650 | 12 | 14-185 |
GD-12X900 | 25.5" | 900 | 14-265 | |

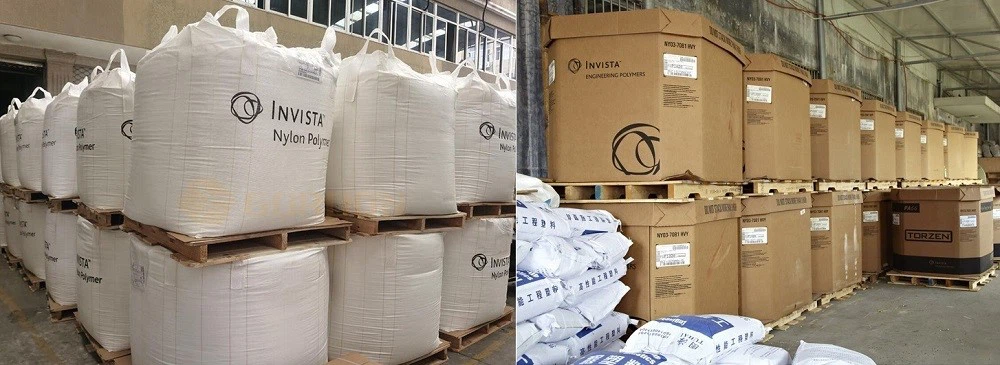

PA66 Raw Material (Brand: INVISTA）

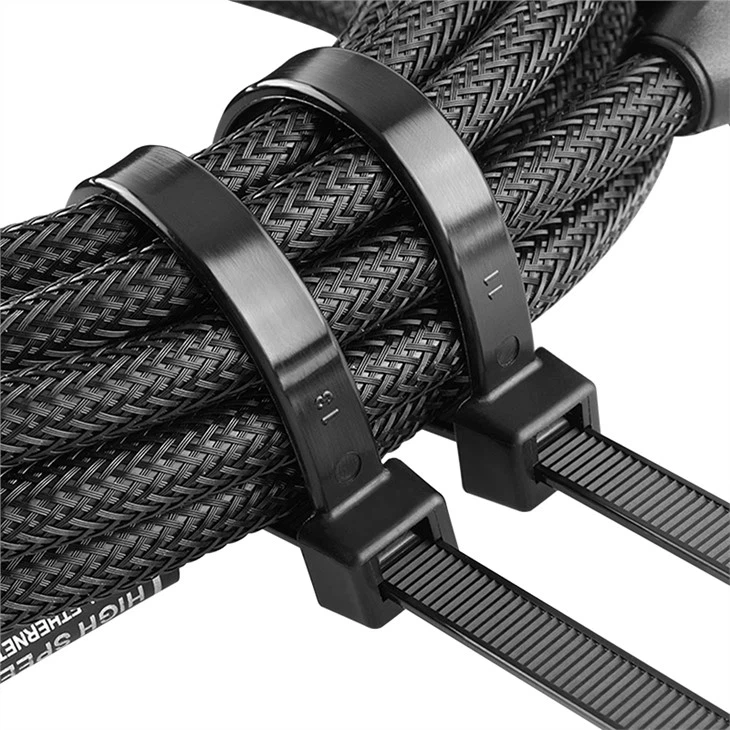

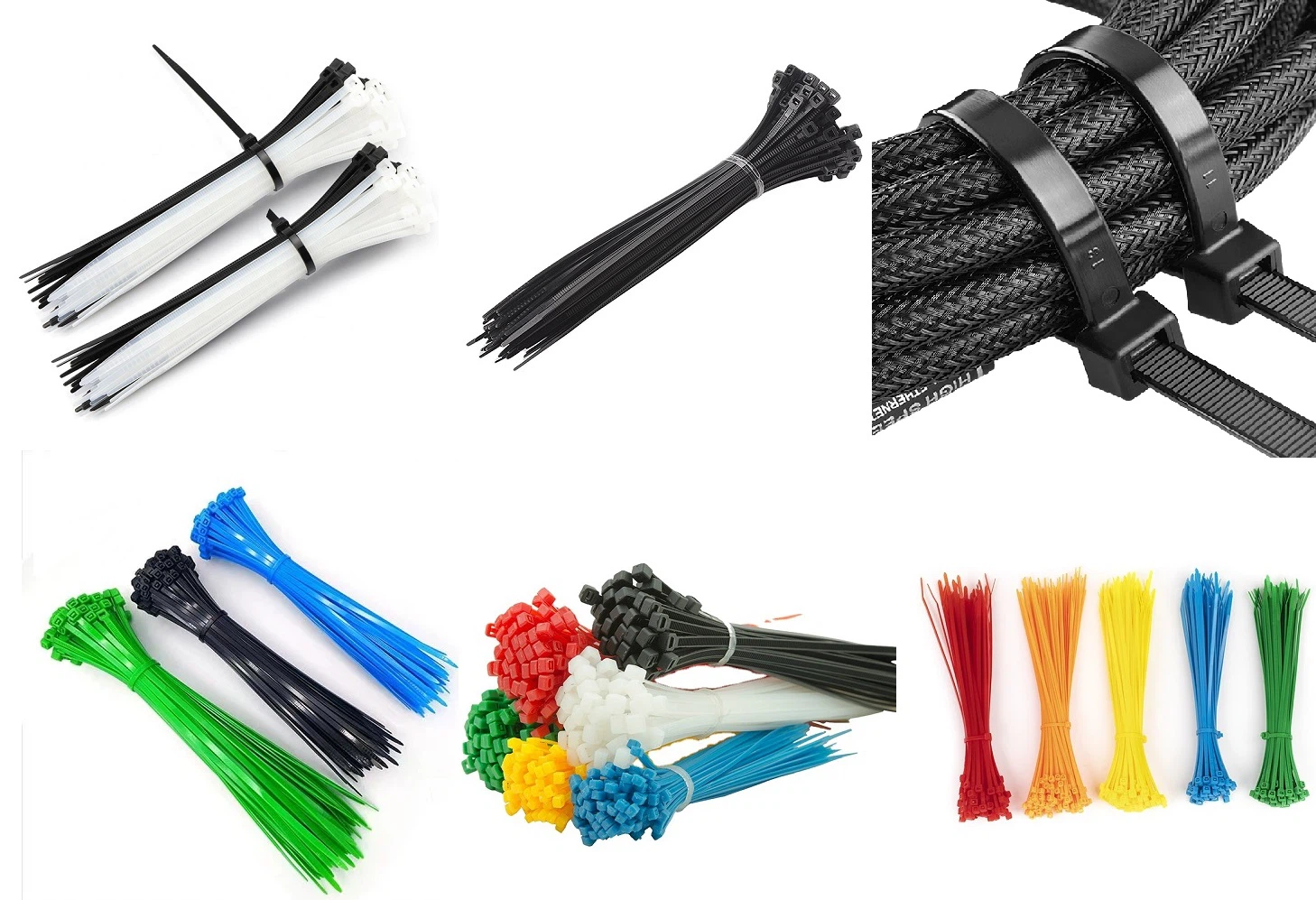

Product photo

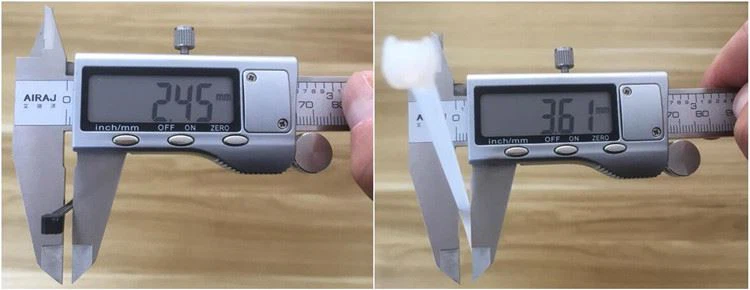

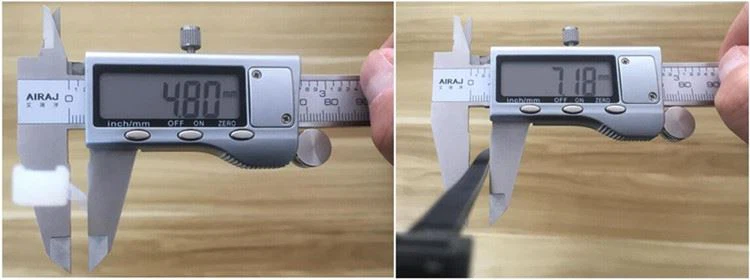

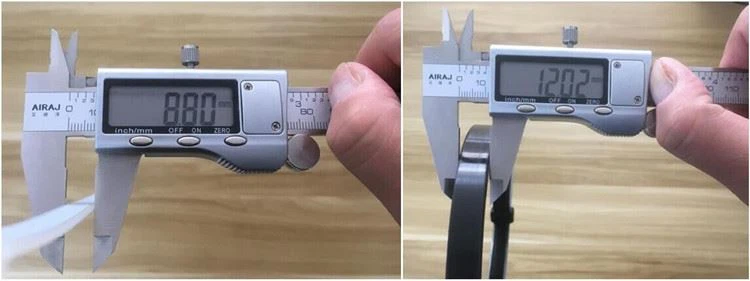

Cable tie width 2.5mm/ 3.6mm/ 4.8mm/ 7.2mm/ 9.0mm/ 12.0mm:

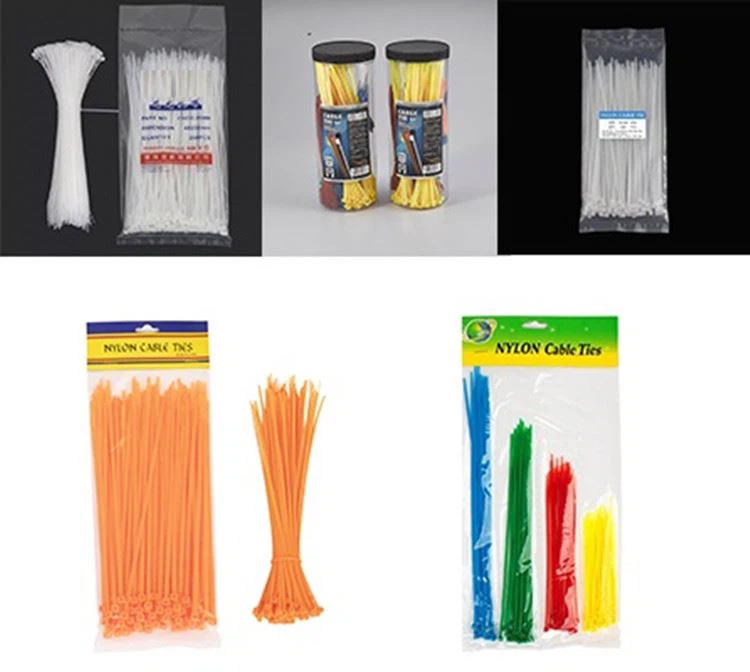

Special packing can be customized(cable ties kit & cable ties set):

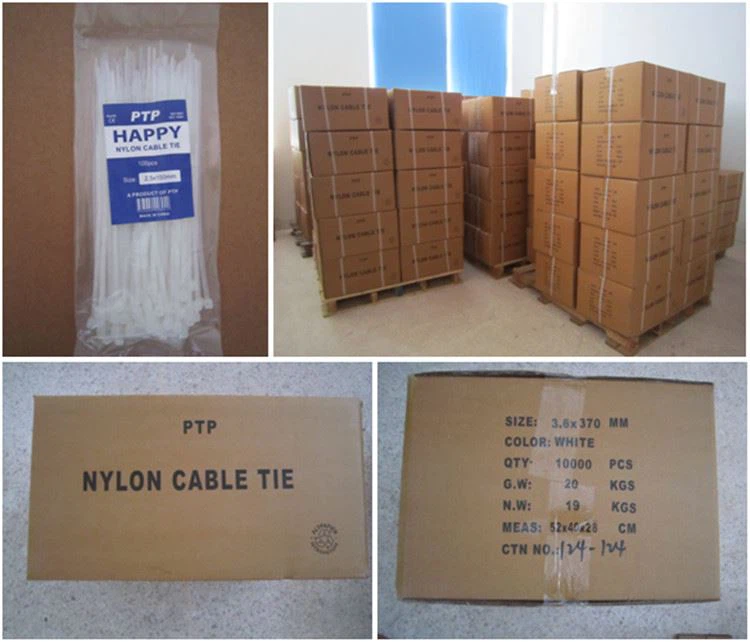

Workshop, Packing & Shipment:
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, We have product catalogue.Please contact us online or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it;s impossible to mark all of their price on a list. At the same time the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
3. Q: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30 days.
4. Q : Can you make customized products and customized packing?
A: Yes. We made a lot of customized products for our customer before.And we made many moulds for our customers already. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
5. Q: Can you provide samples ? Are the samples free ?
A: We offer sample for free, around 4-5days arrived your hand by DHL, UPS or EMS

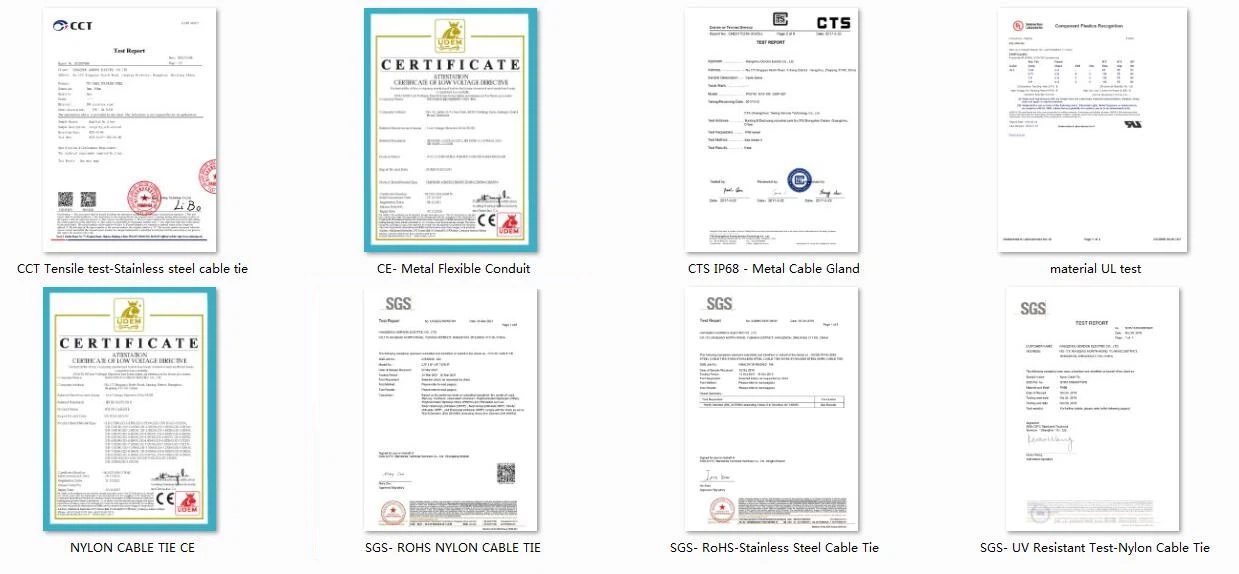

Certification
