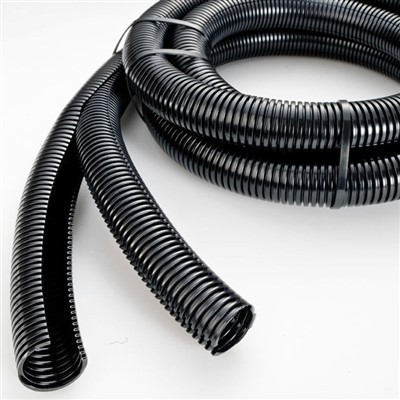

Flexible Electrical Conduit Pipe

Ease of Installation:
Flexible conduits are easy to install compared to rigid conduits, especially in complex or confined spaces. Their ability to bend reduces the need for additional fittings, saving time and effort during installation.

Protection Against Environmental Factors:
Flexible conduits, especially liquid-tight versions, offer excellent protection against water, chemicals, and physical damage. This ensures the longevity of the electrical system, even in harsh environments.

Versatility:
Available in various materials, sizes, and types, flexible conduits can be used in a wide range of applications, from simple residential wiring to heavy-duty industrial use.

Cost-Effective:
Flexible PVC conduits are more affordable than many rigid alternatives, making them a cost-effective solution for most wiring protection needs.



Material:	High Grade Imported PA6
Color:	Black, Dark Grey, Other colors can be customized
Temperature Range:	-40℃ to 125℃
Protection degree:	IP68
Flammability Rating:	UL94V-0 or UL94HB
OEM/ODM:	Customization Service Provided
Certification:	SGS CE ROHS
Features:	PA flexible conduit flexible and ductile, Medium-duty, Twist-reisistance,high mechanical Strength, Chemical resistance to Oil,alkalies,weak acids and so on. Resistance to abrasion and UV. Free from Halogen and Phosphorus.
How to use:	PA flexible conduit for applications in machinery building,electrical control system,installation industries and so on. Installation Instruction: Insert the wire cable into the conduits, then connect the conduits with matching size connector.
Bearing capacity:	PA flexible conduit can bear the weight of foot, no fracture, no deformation, can quickly recover, and itself without any damage,with self-extinguishing and high anti-fatigue strength characteristics, resistance to frequent bending movement.



Item No.	Item No.	Conduit Size	Inner dia x outer dia (mm)	Packing unit(meter)
black	grey
GD-PAH-10B	GD-PAH-10G	AD10	6.5x10	100
GD-PAH-13B	GD-PAH-13G	AD13	10x13	100
GD-PAH-15.8B	GD-PAH-15.8G	AD15.8	12x15.8	100
GD-PAH-18.5B	GD-PAH-18.5G	AD18.5	14.3x18.5	100
GD-PAH-21.2B	GD-PAH-21.2G	AD21.2	17x21.2	100
GD-PAH-25.5B	GD-PAH-25.5G	AD25.5	21x25.5	50
GD-PAH-28.5B	GD-PAH-28.5G	AD28.5	23x28.5	50
GD-PAH-34.5B	GD-PAH-34.5G	AD34.5	29x34.5	50
GD-PAH-42.5B	GD-PAH-42.5G	AD42.5	36x42.5	25
GD-PAH-54.5B	GD-PAH-54.5G	AD54.5	48x54.5	25



Flexible electrical conduit pipes are versatile and used in various environments. Some common applications include:



Residential Wiring: Flexible conduits are frequently used in homes, especially in areas where wiring needs to be routed through walls, attics, or around corners. They are also used in connecting appliances and devices to the main electrical system.



Commercial Installations: In office buildings, flexible conduits provide protection for electrical wiring installed in walls, ceilings, or floors, ensuring compliance with safety regulations.



Industrial Environments: In factories and industrial settings, flexible metal conduits offer robust protection against mechanical damage, chemicals, and moisture. They are often used for connecting equipment and machinery.



Outdoor Installations: Liquid-tight flexible conduits are commonly used in outdoor lighting, signage, or other external electrical systems exposed to weather conditions.



1. What are the primary advantages of using flexible electrical conduits over rigid conduits?
Flexible electrical conduits offer ease of installation, allowing for bending and routing in tight spaces, which minimizes the need for additional fittings. They also provide excellent protection against environmental factors and are available in various materials and sizes, making them versatile and cost-effective.



2. In what environments are liquid-tight flexible conduits most beneficial?
Liquid-tight flexible conduits are particularly beneficial in wet or damp environments, such as outdoor installations or areas exposed to moisture. Their watertight construction helps protect electrical wiring from water damage, ensuring the system's longevity.



3. How do flexible conduits enhance the safety of electrical installations?
Flexible conduits enhance safety by protecting wiring from physical damage, chemicals, and moisture. This reduces the risk of electrical faults or failures, particularly in harsh environments, thus ensuring the reliability of the electrical system.



4. Can flexible conduits be used in industrial applications?
Yes, flexible conduits are ideal for industrial applications due to their durability and resistance to mechanical stress. Reinforced flexible conduits can withstand impacts and are often used in factories and warehouses where equipment operates under heavy loads.



5. Are flexible PVC conduits cost-effective for large-scale projects?
Absolutely! Flexible PVC conduits are more affordable than many rigid options, making them a cost-effective choice for large-scale electrical projects. Their ease of installation further reduces labor costs, enhancing overall project savings.



6. What factors should be considered when selecting a flexible conduit for a specific application?
When selecting a flexible conduit, consider the environment (e.g., moisture levels, chemical exposure), the required flexibility, the mechanical stress it will face, and whether you need features like liquid-tightness or additional reinforcement for enhanced protection.
