CORD END TERMINAL
Material Terminal Body:Copper
Plating:Tin
Color: Red, yellow, blue, green, black, grey, orange
Usage: Connecting Cable
Product name: CORD END TERMINAL/ Insulated Terminal
naked terminal/ male terminal connector/ male spade terminal/ female spade connectors/ female cable lug/ pin termianl/ bullet terminal
Material Terminal Body:Copper
Plating:Tin
Color: Red, yellow, blue, green, black, grey, orange
Usage: Connecting Cable
Feature: Well-made / wear wel / insulation protection,
Payment terms: T/T,Western Union,L/C , D/P, PAYPAL, Alibaba Order.
certification: RoHS
Application field: Electrician electrical/Industrial Equipment
Surface treatment: According to customer needs:tin plating, nickel plating,silverplating,gold plating
MOQ: Small order can be accepted
Delivery time: Conventional terminal for about a week
Qulity control: All goods well be 100% inspected before dispatched
Test: High temperature,Salt sprayl,waterproof
Package: 100/200/300/500/1000 per bag with label,then with standard carton

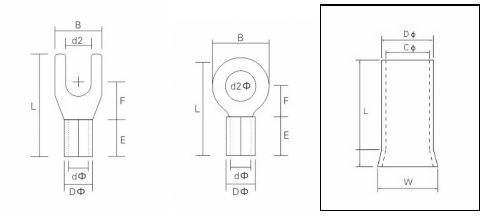

CREWEL TUBE PRE-INSULATING TERMINAL | |||||||||
ITEM NO. | Conductor | DIMENSION | Color | ||||||
F | L | W | B | DØ | CØ | German | French | ||
mm2 | mm | mm | mm | mm | mm | mm | |||
TE 0508 | 2 X 0.5 | 8 | 14.5 | 5 | 6.5 | 1.8 | 1.5 | White | White |
TE 7508 | 2 X 0.75 | 8 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | Blue | Gray |
TE 7510 | 2 X 0.75 | 10 | 16.7 | 5.5 | 6.7 | 2.1 | 1.8 | ||
TE 1008 | 2 X 1.0 | 8 | 15.1 | 5.5 | 7.1 | 2.3 | 2 | Red | Red |
TE 1010 | 2 X 1.0 | 10 | 17.1 | 5.5 | 7.1 | 2.3 | 2 | ||
TE 1508 | 2 X 1.5 | 8 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | Black | Blue |
TE 1512 | 2 X 1.5 | 12 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 | ||
TE 2510 | 2 X 2.5 | 10 | 18.5 | 8 | 8.5 | 3.3 | 2.9 | Gray | Glue |
TE 2513 | 2 X 2.5 | 13 | 21.5 | 8 | 8.5 | 3.3 | 2.9 | ||
TE 4012 | 2 X 4.0 | 12 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | Orange | Gray |
TE 6014 | 2 X 6.0 | 14 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | Green | Yellow |
TE 10-14 | 2 X 10.0 | 14 | 26.6 | 12.6 | 12 | 6.9 | 6.5 | Brown | Red |
TE 16-14 | 2 X 16.0 | 14 | 31.3 | 19 | 17.3 | 8.7 | 8.3 | White | Blue |
Male Pre-Insulating Joint | |||||||||
Item No. | Nama Tab | Thickness | Dimension（mm） | Color | Description | ||||
（mm） | B | DØ | dø | L | E | ||||
MDD1.25-110(5) | 0.5x2.8 | 0.5 | 2.8 | 3.8 | 1.7 | 17.7 | 10.0 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl： Brass Insulation：PVC |
MDD1.25-110(8) | 0.8x2.8 | 0.8 | 2.8 | 3.8 | 1.7 | 17.7 | |||
MDD1.25-187(5) | 0.5x4.75 | 0.5 | 4.8 | 3.8 | 1.7 | 20.0 | |||
MDD1.25-187(8) | 0.4x4.75 | 0.4x2 | 4.8 | 3.8 | 1.7 | 20.0 | |||
MDD1.25-250 | 0.8x6.35 | 0.4x2 | 6.4 | 3.8 | 1.7 | 21.0 | |||
MDD2-110(5) | 0.5x2.8 | 0.5 | 2.8 | 4.3 | 2.3 | 17.7 | 10.0 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl：Brass Insulation：PVC |
MDD2-110(8) | 0.8x2.8 | 0.8 | 2.8 | 4.3 | 2.3 | 17.7 | |||
MDD2-187(5) | 0.5x4.75 | 0.5 | 4.8 | 4.3 | 2.3 | 20.0 | |||
MDD2-187(8) | 0.4x4.75 | 0.4x2 | 4.8 | 4.3 | 2.3 | 20.0 | |||
MDD2-250 | 0.8x6.35 | 0.4x2 | 6.4 | 4.3 | 2.3 | 21.0 | |||
MDD5.5-187 | 0.5x4.75 | 0.5 | 4.8 | 5.7 | 3.4 | 22.0 | 12.5 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=24A Materl：Brass Insulation：PVC |
MDD5.5-250 | 0.8x6.35 | 0.4x2 | 6.4 | 5.7 | 3.4 | 23.0 | |||
Female Pre-Insulating Joint | |||||||||
Item No. | Nama Tab | Thickness | Dimension（mm） | Color | Description | ||||
（mm） | B | DØ | dø | L | E | ||||
FDD1.25-110(5) | 0.5x2.8 | 0.3 | 3.3 | 3.8 | 1.7 | 18.5 | 10 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl： Brass Insulation：PVC |
FDD1.25-110(8) | 0.8x2.8 | 3.3 | 3.3 | 3.8 | 1.7 | 18.5 | |||
FDD1.25-187(5) | 0.5x4.75 | 0.35 | 5.0 | 3.8 | 1.7 | 19 | |||
FDD1.25-187(8) | 0.8x4.75 | 0.35 | 5.0 | 3.8 | 1.7 | 19 | |||
FDD1.25-205 | 0.5x5.2 | 0.35 | 5.7 | 3.8 | 1.7 | 19 | |||
FDD1.25-250 | 0.8x6.35 | 0.4 | 6.6 | 3.8 | 1.7 | 19.8 | |||
FDD2-110(5) | 0.5x2.8 | 0.3 | 3.3 | 4.3 | 2.3 | 18.5 | 10 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl： Brass Insulation：PVC |
FDD2-110(8) | 0.8x2.8 | 0.3 | 3.3 | 4.3 | 2.3 | 18.5 | |||
FDD2-187(5) | 0.5x4.75 | 0.35 | 5.0 | 4.3 | 2.3 | 19 | |||
FDD2-187(8) | 0.8x4.75 | 0.35 | 5.0 | 4.3 | 2.3 | 19 | |||
FDD2-205 | 0.5x5.5 | 0.35 | 5.7 | 4.3 | 2.3 | 19 | |||
FDD2-250 | 0.8x6.35 | 0.4 | 6.6 | 4.3 | 2.3 | 19 | |||
FDD2-312 | 0.8x8.0 | 0.4 | 8.2 | 4.3 | 2.3 | 23.7 | |||
FDD5.5-187(5) | 0.5x4.75 | 0.4 | 5 | 5.7 | 3.4 | 22 | 12.5 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=24A Materl：Brass Insulation：PVC |
FDD5.5-187(8) | 0.8x4.75 | 0.4 | 5 | 5.7 | 3.4 | 22 | |||
FDD5.5-250 | 0.8x6.35 | 0.4 | 6.6 | 5.7 | 3.4 | 23.4 | |||
FDD5.5-375 | 1.2x9.4 | 0.5 | 9.9 | 5.7 | 3.4 | 29.6 | |||
Nylon Male Terminals | ||||||||||
Item No. | Plug specitications | Dimension（mm） | Color | Description | ||||||
W | F | L | B | Dø | CØ | T | ||||
MDFN 1.25-250 | 0.8x6.35 | 6.35 | 7.7 | 24.0 | 11.0 | 4.0 | 1.7 | 0.4 | Red | Materl： Brass Insulation： Nylon Temperature：105℃ 400V |
MDFN 2-250 | 0.8x6.35 | 6.35 | 7.7 | 24.0 | 11.0 | 4.5 | 2.3 | 0.4 | Blue | |
MDFN 5.5-250 | 0.8x6.35 | 6.35 | 7.7 | 25.0 | 13.0 | 6.3 | 3.4 | 0.4 | Yellow | |
Female Full-Insulating Joint | |||||||||
Item No. | Nama Tab | Thickness | Dimension（mm） | Color | Description | ||||
（mm） | B | DØ | dø | L | E | ||||
FDFD1.25-110(5) | 0.5x2.8 | 0.3 | 3.3 | 3.8 | 1.7 | 20.0 | 10.0 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl： Brass Insulation：PVC |
FDFD1.25-110(8) | 0.5x2.8 | 0.3 | 3.3 | 3.8 | 1.7 | 20.0 | |||
FDFD1.25-187(5) | 0.5x4.75 | 0.35 | 5.0 | 3.8 | 1.7 | 20.5 | |||
FDFD1.25-187(8) | 0.8x4.75 | 0.35 | 5.0 | 3.8 | 1.7 | 20.5 | |||
FDF1.25-250 | 0.8x6.35 | 0.4 | 6.6 | 3.8 | 1.7 | 22.4 | |||
FDFD2-110(5) | 0.5x2.8 | 0.3 | 3.3 | 4.3 | 2.3 | 20.0 | 10.0 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl：Brass Insulation：PVC |
FDFD2-110(8) | 0.8x2.8 | 0.3 | 3.3 | 4.3 | 2.3 | 20.0 | |||
FDFD2-187(5) | 0.8x4.75 | 0.35 | 5.0 | 4.3 | 2.3 | 20.5 | |||
FDFD2-187(8) | 0.8x4.75 | 0.35 | 5.0 | 4.3 | 2.3 | 20.5 | |||
FDFD2-250 | 0.8x6.35 | 0.4 | 6.6 | 4.3 | 2.3 | 22.7 | |||
FDFD5.5-187x5 | 0.5x4.75 | 0.4 | 5 | 5.7 | 3.4 | 23.0 | 12.5 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=24A Materl： Brass Insulation：PVC |
FDFD5.5-187x8 | 0.8x4.75 | 0.4 | 5 | 5.7 | 3.4 | 23.0 | |||
FDFD5.5-250 | 0.8x6.35 | 0.4 | 6.6 | 5.7 | 3.4 | 23.0 | |||
FDFD5.5-375 | 1.2x9.4 | 0.5 | 9.9 | 5.7 | 3.4 | 28.5 | |||
Long Full Insulating Middle Joint | |||||||||
Item No. | A.W.G | Lead Section | Dimension（mm） | Max.current | Color | Description | |||
mm2 | I | dØ | DØ | L | |||||
BV 0.5 | 26-22 | 0.2-0.5 | 12.0 | 1.3 | 3.3 | 22.0 | 15A | Red | PVC Middle Connector Long Type Material:Copper Insulating Materials:PVC |
BV 1.2 | 22-16 | 0.5-1.5 | 15.0 | 1.7 | 4.3 | 25.0 | 19A | Red | |
BV 2 | 16-14 | 1.5-2.5 | 15.0 | 2.3 | 4.9 | 25.0 | 27A | Blue | |
BV 3.5 | 14-12 | 2.5-4 | 15.0 | 3.0 | 6.3 | 25.0 | 36A | Black | |
BV 5.5 | 12-10 | 4-6 | 15.0 | 3.4 | 6.7 | 25.0 | 48A | Yellow | |
BV 8 | #8 | 6-10 | 21.0 | 4.5 | 8.5 | 32.0 | 62A | Red | |
BV 14 | #4 | 10-16 | 26.0 | 5.8 | 10.5 | 42.0 | 88A | Blue | |
BV 22 | #4 | 16-25 | 29.0 | 7.7 | 13.0 | 50.0 | 115A | Yellow | |
BV 38 | #2 | 35-50 | 32.0 | 9.4 | 15.3 | 55.0 | 160A | Red | |
Nylon Bullet Female Terminal | ||||||||||
Item No. | Dimension（mm） | Lead Section | Color | Description | ||||||
BØ | bØ | DØ | dØ | L | F | E | ||||
FRFNYD 0.5-0.78 | 3.2 | 2.0 | 3.5 | 1.6 | 24.0 | 10.0 | 11.0 | 22~18A.W.G 0.5~0.75mm | White | Materl： Brass Insulation： Nylon Temperature：105℃400V |
FRFNY 1.25-156 | 6.3 | 3.9 | 4.0 | 1.7 | 24.3 | 13.3 | 11.0 | 22~16A.W.G 0.5~1.5mm | Red | |
FRFNY 2-156 | 6.3 | 3.9 | 4.5 | 2.3 | 24.3 | 13.3 | 11.0 | 16~14A.W.G 1.5~2.5mm | Blue | |
FRFNY 5.5-195 | 6.8 | 4.9 | 6.3 | 3.4 | 27.0 | 13.3 | 13.0 | 12~10A.W.G 4~6mm | Yellow | |
Shoulder Shaped Male & Female Pre-Insulating Joint | |||||||||
Item No. | Nama Tab | Dimension（mm） | Color | Description | |||||
（mm） | B | B1 | E | DØ | dø | L | |||
PBDD1.25-250 | 0.8x6.35 | 6.6 | 6.35 | 10 | 3.8 | 1.7 | 22.5 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl： Brass Insulation：PVC |
PBDD2-250 | 0.8x6.35 | 6.6 | 6.35 | 10 | 4.3 | 2.3 | 22.5 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl： Brass Insulation：PVC |
PBDD5.5-250 | 0.8x6.35 | 6.6 | 6.35 | 13 | 5.7 | 3.4 | 24.0 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=15A Materl：Brass Insulation：PVC |
Chip-Shaper Pre-Insulating Joint | |||||||
Item No. | Dimension（mm） | Color | Description | ||||
B | F | L | E | DØ | |||
DBV1.25-10 | 2.3 | 10 | 20 | 10 | 4.3 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=19A Materl： Copper Insulation：PVC Thickness：0.7mm |
DBV1.25-11 | 3.0 | 11 | 21 | ||||
DBV1.25-14 | 3.0 | 14 | 24 | ||||
DBV1.25-18 | 2.3 | 18 | 28 | ||||
DBV2-9 | 2.8 | 9 | 19 | 10 | 4.9 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=27A Materl： Copper Insulation：PVC Thickness：0.8mm |
DBV2-10 | 2.8 | 10 | 20 | ||||
DBV2-14 | 3.0 | 14 | 24 | ||||
DBV2-18 | 2.3 | 18 | 28 | ||||
DBV5.5-10 | 2.8 | 10 | 23 | 13 | 6.7 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=48A Copper Insulation：PVC Thickness 1.0mm |
DBV5.5-14 | 4.5 | 14 | 27 | ||||
DBV5.5-18 | 4.5 | 18 | 31 | ||||
Flag Female Insulating Joint（Nylon） | ||||||||
Item No. | Plug specitications | Dimension（mm） | Temperature | Color | Description | |||
W | F | L | dØ | |||||
FLDNY 1.25-187(5) | 0.5x4.75 | 5.0 | 7.0 | 15.0 | 1.7 | 105℃400V | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl： Brass Insulation：Nylon |
FLDNY 1.25-187(8) | 0.8x4.75 | 5.0 | 7.0 | 15.0 | 1.7 | |||
FLDNY 1.25-250 | 0.8x4.75 | 6.6 | 7.6 | 16.0 | 1.7 | |||
FLDNY 2-187(5) | 0.5x4.75 | 5.0 | 7.0 | 15.0 | 2.3 | 105℃400V | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl：Brass Insulation：Nylon |
FLDNY 2-187(8) | 0.8x4.75 | 5.0 | 7.0 | 15.0 | 2.3 | |||
FLDNY 2-250 | 0.8x6.35 | 6.6 | 7.6 | 16.0 | 2.3 | |||
FLDNY 2-250L | 0.8x6.35 | 6.6 | 7.6 | 17.0 | 2.3 | |||
FLDNY 5.5-250 | 0.8x6.35 | 7.0 | 7.6 | 17.5 | 3.4 | 105℃400V | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=24A Materl：Brass Insulation：Nylon |
Pin-Shaped Pre-Insulating Terminal | |||||||
Item No. | Dimension（mm） | Color | Description | ||||
B | F | L | E | DØ | |||
PTV 1.25-9 | 1.9 | 9.0 | 19.0 | 10.0 | 4.3 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl：Copper Insulation：PVC Thickness：0.7mm |
PTV 1.25-10 | 1.9 | 10.0 | 20.0 | ||||
PTV 1.25-12 | 1.9 | 12.0 | 22.0 | ||||
PTV 1.25-13 | 1.9 | 13.0 | 23.0 | ||||
PTV 1.25-18 | 1.9 | 18.0 | 28.0 | ||||
PTV 2-9 | 1.9 | 9.0 | 19.0 | 10.0 | 4.9 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=27A Materl：Copper Insulation：PVC Thickness：0.8mm |
PTV 2-10 | 1.9 | 10.0 | 20.0 | ||||
PTV 2-12 | 1.9 | 12.0 | 22.0 | ||||
PTV 2-13 | 1.9 | 13.0 | 23.0 | ||||
PTV 2-18 | 1.9 | 18.0 | 28.0 | 13.0 | 6.7 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=48A Materl：Copper Insulation：PVC Thickness：1.0mm |
PTV 5.5-10 | 2.8 | 10.0 | 23.8 | ||||
PTV 5.5-13 | 2.8 | 13.0 | 26.8 | ||||
PTV 5.5-18 | 2.8 | 18.0 | 31.8 | ||||
Bullet Shaped Male Pre-Insulating Joint | ||||||||
Item No. | Thickness | Dimension（mm） | Color | Description | ||||
B | F | DØ | E | L | ||||
MPD1.25-156 | 0.4 | 4.0 | 8.5 | 1.7 | 10.5 | 21.5 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl：Brass Insulation：PVC |
MPD2-156 | 0.4 | 4.0 | 8.5 | 2.3 | 10.5 | 21.7 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl： Brass Insulation：PVC |
MPD2-195 | 0.4 | 5.0 | 8.5 | 2.3 | 10.5 | 21.7 | ||
MPD5.5-156 | 0.4 | 4.0 | 8.5 | 3.4 | 13.0 | 24.0 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=24A Materl： Brass Insulation：PVC |
MPD5.5-195 | 0.4 | 5.0 | 8.5 | 3.4 | 13.0 | 24.0 | ||
Bullet Shaped Female Insulating Joint | ||||||||
Item No. | Thickness | Dimension（mm） | Color | Description | ||||
B | F | DØ | E | L | ||||
FRD1.25-156 | 0.4 | 4.0 | 7.0 | 1.7 | 10.5 | 23.3 | Red | Lead Section：0.5~1.5mm2 A.W.G.:22~16 Max.current：IMAX=10A Materl：Brass Insulation：PVC |
FRD2-156 | 0.4 | 4.0 | 7.0 | 2.3 | 10.5 | 23.3 | Blue | Lead Section：1.5~2.5mm2 A.W.G.:16~14 Max.current：IMAX=15A Materl： Brass Insulation：PVC |
FRD2-195 | 0.4 | 5.0 | 7.0 | 2.3 | 10.5 | 25.1 | ||
FRD5.5-156 | 0.4 | 4.0 | 7.0 | 3.4 | 12.5 | 25.1 | Yellow | Lead Section：4~6mm2 A.W.G.:12~10 Max.current：IMAX=24A Materl：Brass Insulation：PVC |
FRD5.5-195 | 0.4 | 5.0 | 7.0 | 3.4 | 12.5 | 25.1 | ||
FAQ:
Q1. Are you a factory or trading company?
A2: : We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: Our Quality department will carefully check every process in order to meet their standard, such as raw material quality,
Material processing, Assembly process, Finished product performance testing, Packaging material quality.
All the products will be 100% checked before the shipment.
Q3: How long you can give warranty to us?
A3: For all our products, we will give 2 years warranty. If any quality problem happen during this time,we will offer you with
free placement.
Q4: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit,or even we can give you 1 months to pay us after shipping.
