Product name:	Elbow quick conduit fitting connector/ 90° Quick Connector
Thread:	Metric thread/PG/G thread
Product material:	the use of UL certified nylon PA66 raw materials
Product color:	Black , gray or other colors can be customized
Temperature Range:	Min-40℃, Max100℃, Short-term 120℃
Product characteristics:	in the latch body of special design, handling just plug
Method of application:	The product can access equipment box, can also be selected according to the thread into the outlet for the internal thread of the electrical equipment, simply wave tube into the interface can be

Competitive Advantage:

+Quick Delivery: 10days for one 40ft container.
+ Good Quality: ISO/UL certificate approval

+Best Service: fast delivery, strong package, competitive Price,timely and effective communication

+Powerful Solution: fast and effective solution to problem.

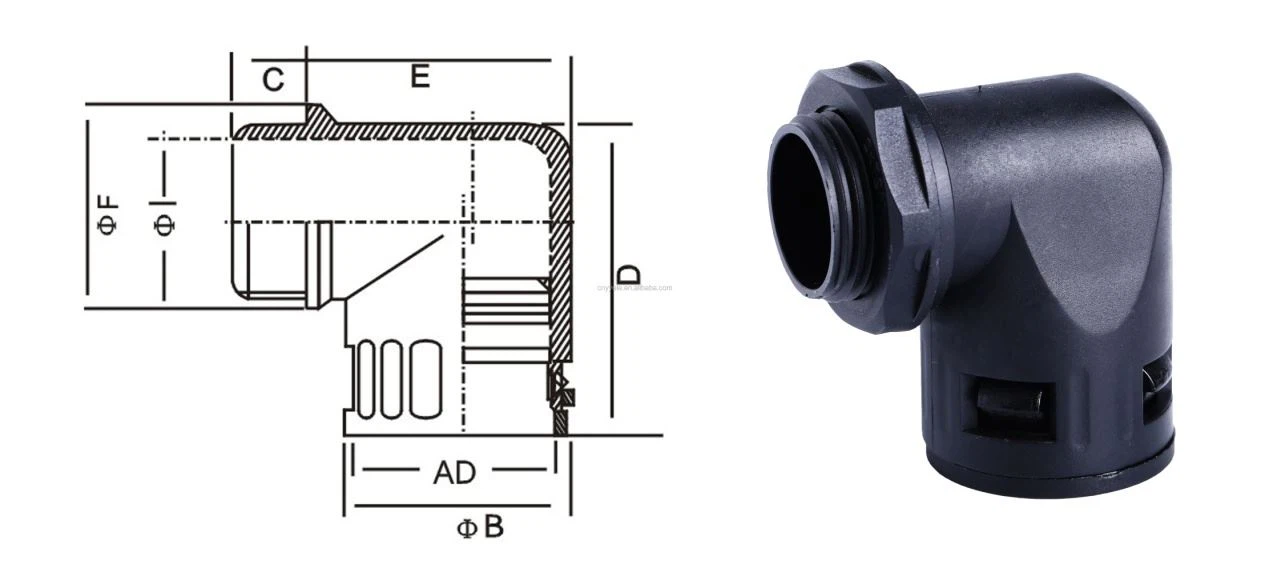

Suitable Flexible Conduit	Metric Dimension Of Thread	AG Outer Diameter	I	C	E	F	Packaging Unit Units/Pack
AD10.0	M12×1.5	12	7	10	32	18	100
AD10.0	M16×1.5	16	10	10	32	20	100
AD13.0	M12×1.5	12	7	10	32	18	100
AD13.0	M16×1.5	16	10	10	34.5	20	100
AD13.0	M18×1.5	18	10	10	35	24	100
AD13.0	M20×1.5	20	11	10	35	24	100
AD15.8	M16×1.5	16	11	10	37.5	24	100
AD15.8	M18×1.5	18	11	10	37.5	24	100
AD15.8	M20×1.5	20	12	10	37.5	24	50
AD18.5	M20×1.5	20	15	11.5	43.5	27	50
AD21.2	M20×1.5	20	15	13	49	31	50
AD21.2	M24×1.5	24	17	13	49	31	50
AD21.2	M25×1.5	25	17	13	49	31	50
AD25.0	M25×1.5	25	19.5	13	52	32	50
AD28.5	M25×1.5	25	19.5	13	57	34	50
AD28.5	M27×2.0	27	23	13	57	34	50
AD28.5	M30×2.0	30	23	13	57	34	50
AD34.5	M32×1.5	32	27	14.5	65	43	20
AD34.5	M36×2.0	36	29	14.5	64	43	20
AD34.5	M40×1.5	40	29	14.5	64	43	20
AD42.5	M40×1.5	40	34	14.5	72	50	10
AD42.5	M48×2.0	48	36	14.5	72	50	10
AD54.5	M50×1.5	50	44	16	84	64	5
AD54.5	M60×2.0	60	48	16	84	64	5
AD54.5	M63×1.5	63	48	16	84	64	5
Suitable Flexible Conduit	PG Dimension Of Thread	AG Outer Diameter	I	C	E	F	Packaging Unit Units/Pack
AD10	PG7	12.5	7	10	32	16	100
AD11.6	PG7	12.5	7	10	32	18	100
AD13	PG9	15.2	10	10	34	20	100
AD15.8	PG11	18.6	12	10	37.5	24.6	100
AD15.8	PG13.5	20.4	14	10	37.5	24	100
AD18.5	PG13.5	20.4	14	11	43.5	27	50
AD21.2	PG16	22.5	15	13	48	31	50
AD28.2	PG21	28.3	22	13	57	34	50
AD34.5	PG29	37	29	14	64	43	20
AD42.5	PG36	47	38	14	72	50	10
AD54.5	PG48	59.3	50	15.5	84	64	5
Suitable Flexible Conduit	G Dimension Of Thread	AG Outer Diameter	I	C	E	F	Packaging Unit Units/Pack
AD13	G3/8''	16.6	10	12	32	20	100
AD21.2	G1/2''	21.3	11	13	49	31	50
AD25	G1/2''	21.63	11	13	52	32	50
AD28.5	G3/4''	26.6	21	13.5	57	34	50
AD34.5	G1''	33.4	28	15	65	43	20

Product advantage:

Dustproof

Salt resistance

Easy install,easy remove.

More convenient to connect with flexible pipe and corrugated piple.

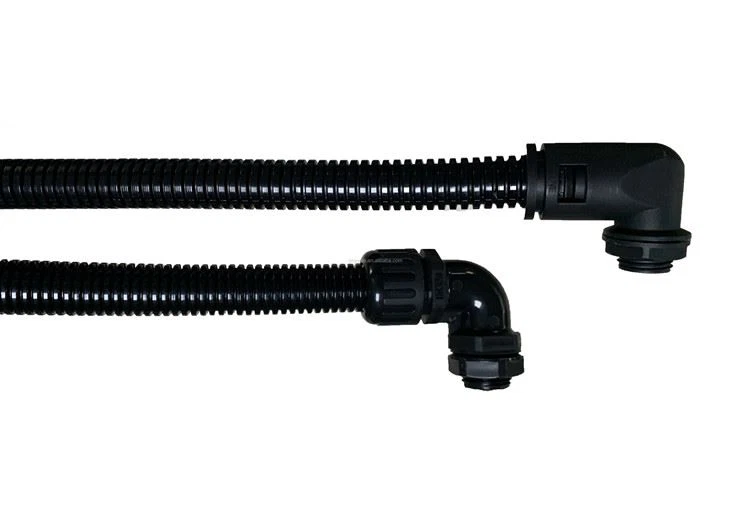

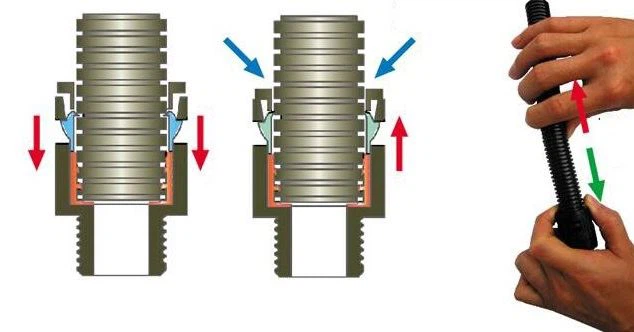

How to use: Elbow quick conduit fitting connector are the fittings of the flexible pipes,which can be either connected with the housing of equipments or connected with electric equipment with inner threaded access hole as per the thread selected.Simply insert the felxible pipe into the union.
