Electrical Wire Protection Durable Dual Wall Custom Heat Shrinkable Insulation Cable Sleeve

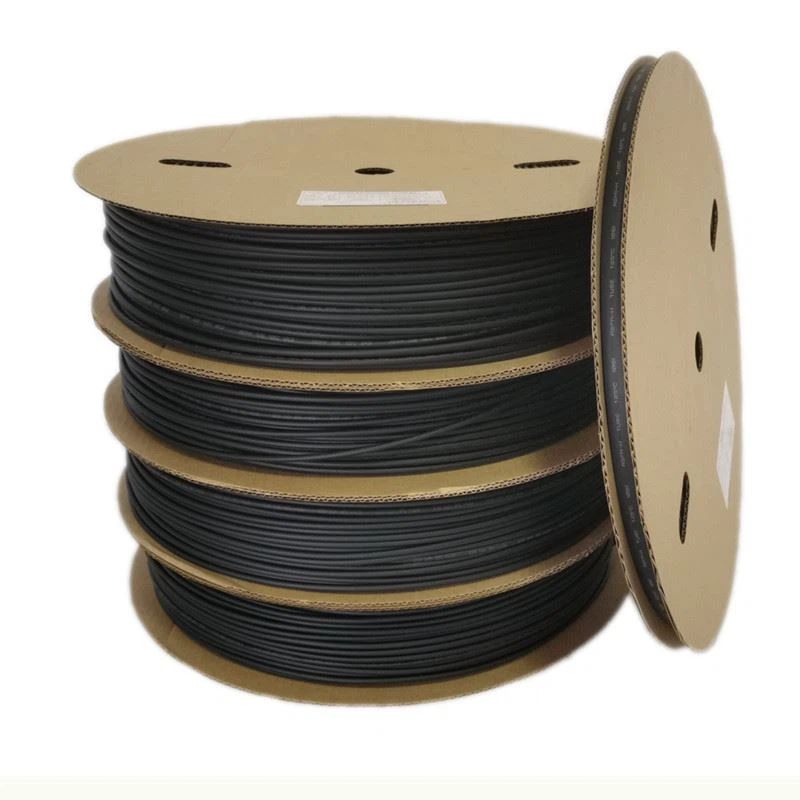

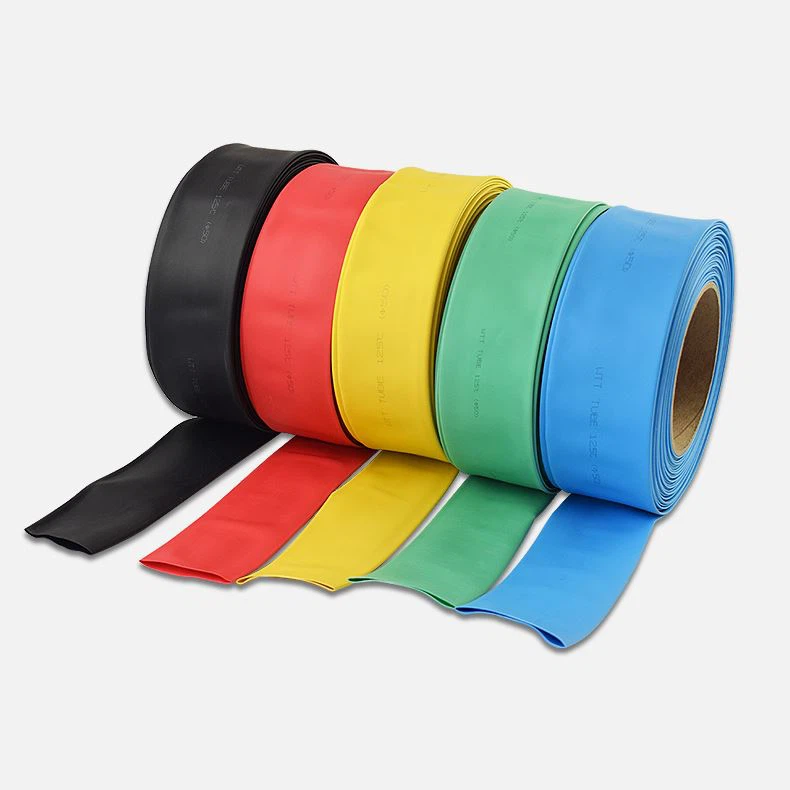

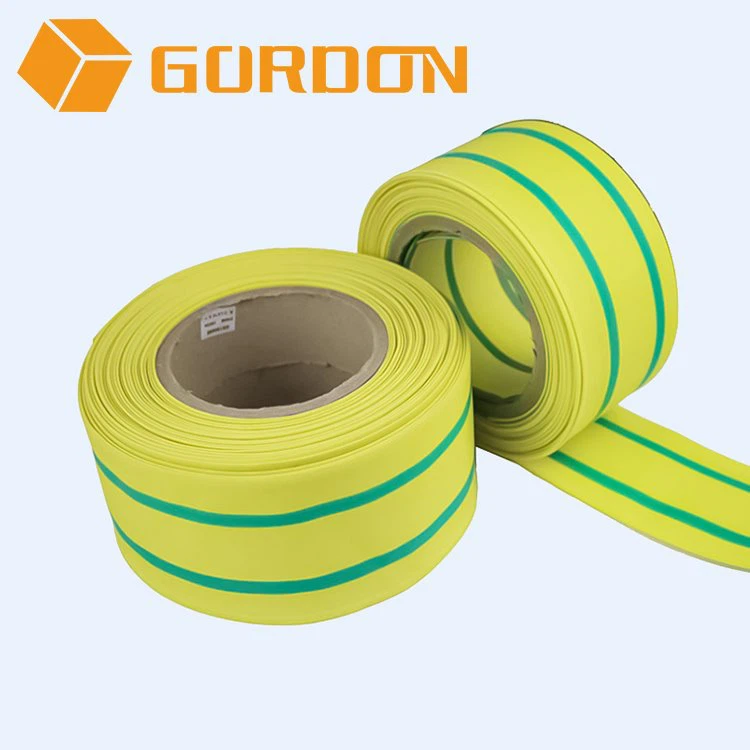

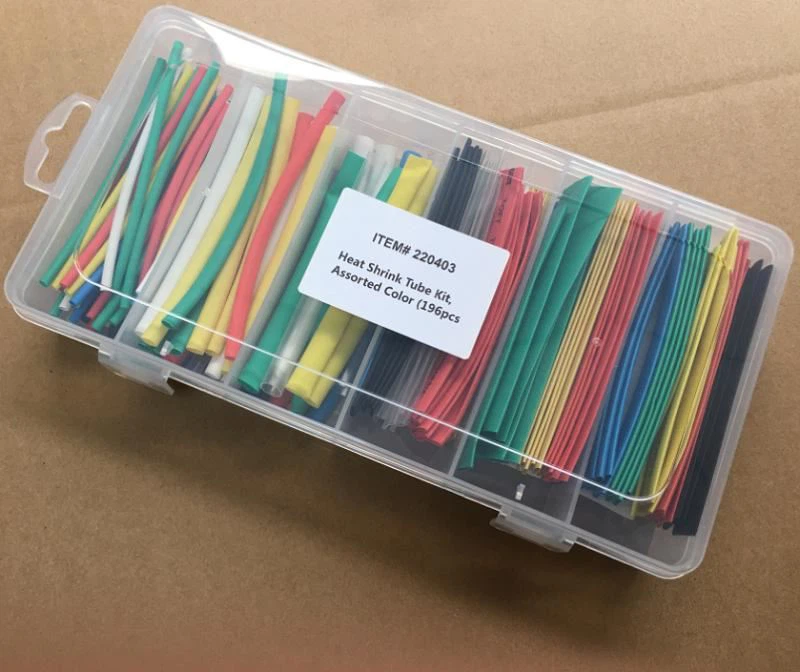

Product name: heat-shrinkable tubings
material: PE
rated voltage: 600V
Tensile Strength: ≥6.4Mpa
Size: 1mm-150mm
Shrink ratio:2 : 1 & 3: 1
Description
Over the years, we have followed the business philosophy of 'efficiency, pragmatism, innovation, and transcendence', committed to providing customers with high-quality nylon cable zip ties, cable tie with screw hole, cable ties kit and services, hoping to create a win-win situation with customers. We have a strict and effective quality management system and a professional project management team. Since always, we are all taking the meager profit but high turnover as an objective, our price justice reasonable and we do not strongly receive the tips, so that customer can absolutely be relieved.
GORDON Heat-shrinkable tubings is processed and manufactured with excellent polyolefin materials. When the products are sharped, they are cross linked and expanded continuously with electronic accelerator. The products are widely used in the marking of electric wires, earthing of cables, special lines and pipelines.
Heat-shrinkable tubings it has high temperature shrinkage, soft flame retardant, insulation and corrosion resistance. It is widely used in insulation
protection of various wiring harnesses, solder joints, inductors, and anti-rust and anti-corrosion of metal pipes and rods.
|
ITEM NO. |
As Supplied |
After Shrinkage |
Packing（M/Roll） |
||
|
I.D(mm) |
Thickness |
I.D（mm） |
厚度 Thickness |
||
|
GD-1 |
1 |
0.2±0.05 |
0.5 |
0.4±0.05 |
400 |
|
GD-1.5 |
1.5 |
0.2±0.05 |
0.75 |
0.4±0.05 |
300 |
|
GD-2 |
2 |
0.25±0.05 |
1 |
0.45±0.1 |
200 |
|
GD-2.5 |
2.5 |
0.25±0.05 |
1.25 |
0.45±0.1 |
|
|
GD-3 |
3 |
0.25±0.05 |
1.5 |
0.45±0.1 |
100 |
|
GD-3.5 |
.5 |
0.25±0.05 |
1.75 |
0.45±0.1 |
|
|
GD-4 |
4 |
0.25±0.05 |
2 |
0.45±0.1 |
|
|
GD-5 |
5 |
0.35±0.05 |
2.5 |
0.55±0.1 |
|
|
GD-6 |
6 |
0.35±0.05 |
3 |
0.55±0.1 |
|
|
GD-7 |
7 |
0.35±0.05 |
3.5 |
0.55±0.1 |
|
|
GD-8 |
8 |
0.35±0.05 |
4 |
0.55±0.1 |
|
|
GD-9 |
9 |
0.35±0.05 |
4.5 |
0.55±0.1 |
|
|
GD-10 |
10 |
0.35±0.05 |
5 |
0.60±0.1 |
|
|
GD-11 |
11 |
0.35±0.05 |
5.5 |
0.60±0.1 |
|
|
GD-12 |
12 |
0.35±0.1 |
6 |
0.70±0.1 |
|
|
GD-13 |
13 |
0.35±0.1 |
6.5 |
0.70±0.1 |
|
|
GD-14 |
14 |
0.35±0.1 |
7 |
0.70±0.1 |
|
|
GD-15 |
15 |
0.35±0.1 |
7.5 |
0.70±0.1 |
|
|
GD-16 |
16 |
0.35±0.1 |
8 |
0.70±0.1 |
|
|
GD-17 |
17 |
0.35±0.1 |
8.5 |
0.70±0.1 |
50 |
|
GD-18 |
18 |
0.4±0.1 |
9 |
0.80±0.1 |
|
|
GD-20 |
20 |
0.5±0.1 |
10 |
0.90±0.1 |
|
|
GD-22 |
22 |
0.5±0.1 |
11 |
0.90±0.1 |
|
|
GD-25 |
25 |
0.5±0.1 |
12.5 |
0.90±0.1 |
|
|
GD-28 |
28 |
0.5±0.1 |
14 |
0.90±0.1 |
|
|
GD-30 |
30 |
0.5±0.1 |
15 |
1.00±0.2 |
25 |
|
GD-35 |
35 |
0.5±0.1 |
17.5 |
1.00±0.2 |
|
|
GD-40 |
40 |
0.5±0.1 |
20 |
1.00±0.2 |
|
|
GD-50 |
50 |
0.5±0.1 |
25 |
1.00±0.2 |
|
|
GD-60 |
60 |
0.6±0.1 |
30 |
1.20±0.2 |
|
|
GD-70 |
70 |
0.6±0.1 |
35 |
1.20±0.2 |
|
|
GD-80 |
80 |
0.6±0.1 |
40 |
1.20±0.2 |
|
|
GD-90 |
90 |
0.6±0.1 |
45 |
1.30±0.2 |
|
|
GD-100 |
100 |
0.7±0.1 |
50 |
1.30±0.2 |
|
|
GD-150 |
150 |
0.8±0.1 |
75 |
1.60±0.2 |
|
Product advantage:
Heat-shrinkable tubings Features:
Application temperature: -50°c to 125°c
Initial shrinkable temperature: 70°c
Full shrinking temperature: 125°c

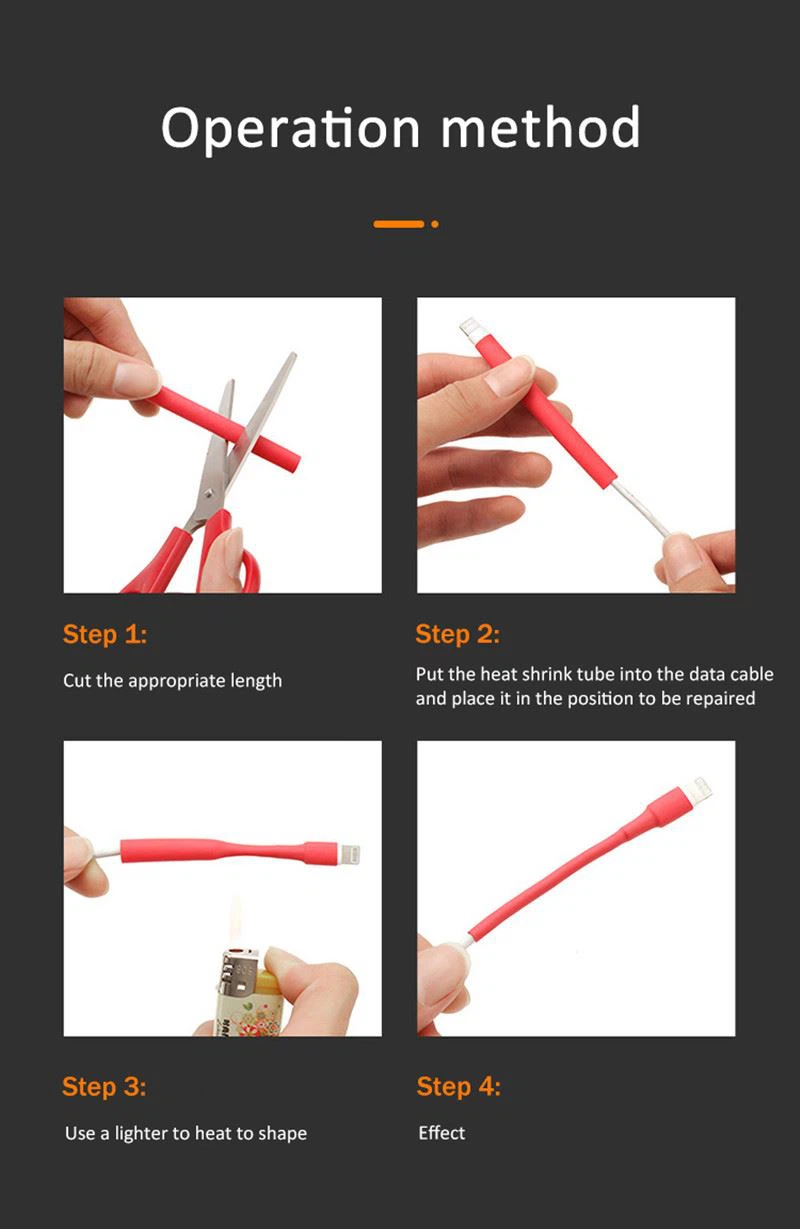

Heat-shrinkable tubings softness, flame retardant, bright and durable colour, timely delivery and supply, convenient use, able to shrink when heated with oven or hot air gun
Standard colour: Black, White, Red, Blue, Yellow, Green, Brown, Grey, Yellow/ Green;
PACKING:
TRADE TERM:
1. Payment:L/C, T/T, D/A, D/P, Western Union, Paypal…etc.
2. OEM: accept
4. Delivery:
•By Courier: 1-2 Working days by special offer
•By Air: 4-7 Working days at appointed airport
•By Sea:20-25 Working days at appointed port
Our Services
1. Superior Quality:
All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.
2. Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.
3. Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clamps educing bushings and so on.
4. Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.
FAQ
Q1. Which shipping methods do you provide?
Ans.: Normally, we will provide the most suitable shipment method for you. If the quantity is few, the goods will be sent by express when the payment is clear. Also, we can transport the goods by air or by sea, just according to your demand.
Q2. Which payment terms is available?
Ans.: We accept Paypal, Western union, Visa, Escrow, payment by T/T in advance or L/C.
Q3. How can we get the samples?
Ans.: We offer free samples by express, but you need pay the express charge.
Q4. How about the price?
Ans.: Our company is manufacturer and have a competitive price.
Q5. How about the quality?
Ans.: Quality Assured. Every order will not be sent over to you before it has been tested fine.
Q6. What's the shipping time?
Ans.: The stock goods will be delivered within 5-7 days and the customized goods will be sent within 15 days after we received the advance payment.
Over rich OEM experience,we can provide professional solutions for customers.
We are based on the core raw material market and develop diversified and high quality Electrical Wire Protection Durable Dual Wall Custom Heat Shrinkable Insulation Cable Sleeve with our technical accumulation and research strength. After years of development, the company has accumulated a profound cultural heritage and rich cultural connotations. We deepened and improved the development system and management system of the company in order to ensure the implementation of the strategy.
