IP68 Water Proof Mg50 Nylon Plastic Wire Cable Glands

Our electrical gland, Armored Cable Gland, velcro tape have a strong price performance, competitive advantage and continuous stability of product quality. Therefore, it is your wise choice to choose our products. For high quality gas welding & cutting equipment supplied on time and at the right price, you can count on company name. The company continues to make efforts in innovation, intensifies research and development, and further updates its products.

Material:	PA(NYLON),UL 94V-2
Hermetic seal:	NBR,EPDM
Working temperature:	-40℃ to 100℃ in static state instantaneous heat resistance up to 120℃ -20℃ to 80℃ in dynamic state instantaeous heat resistance up to 100℃
Color:	Black, Light Grey, can Customize, Multi-Hole can customize.
Thread:	Metric, PG, NPT, G
Protection:	IP68-5Bar
Certification:	SGS CE ROHS IP68 REACH

Thread	Clamp Range	H	GL	Wrench Size	Item No.	Item No.
	mm	mm	mm	mm	grey	black
MG12	4.5-8	12	9	17/19	MG1208	MG1208B
MG12	3-5.3	12	9	17/19	MG1206	MG1206B
MG16	6-10	16	15	22	MG1610	MG1610B
MG16	4-7	16	15	22	MG1607	MG1607B
MG20	9-14	20	15	26/27	MG2014	MG2014B
MG20	6-11	20	15	26/27	MG2011	MG2011B
MG25	13-18	25	15	32/33	MG2518	MG2518B
MG25	10-16	25	15	32/33	MG2516	MG2516B
MG32	18-25	32	15	41	MG3225	MG3225B
MG32	15-22	32	15	41	MG3222	MG3222B
MG40	24-30	40	20	50	MG4030	MG4030B
MG40	20-25	40	20	50	MG4025	MG4025B
MG50	30-40	50	23	60/62	MG5040	MG5040B
MG50	26-32	50	23	60/62	MG5032	MG5032B
MG63	40-50	63	24	73/75	MG6350	MG6350B
MG63	38-46	63	24	73/75	MG6346	MG6346B

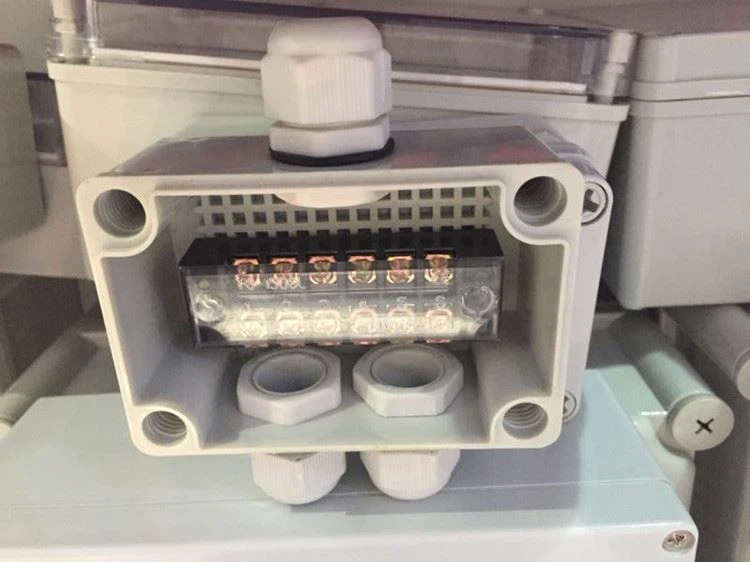

Product Application:

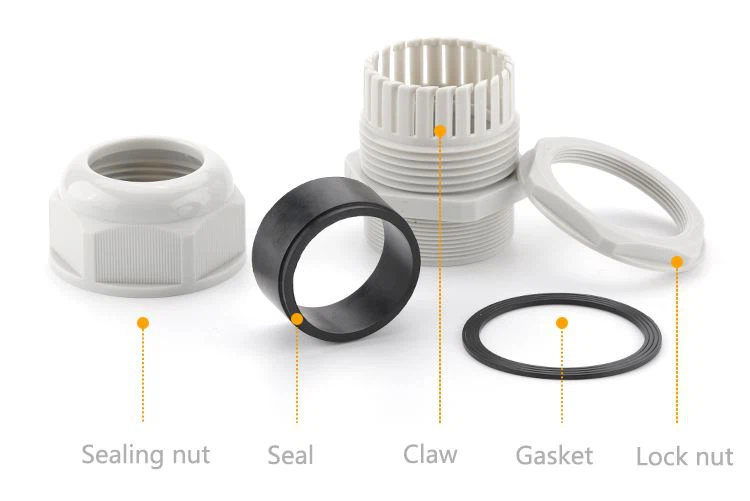

Product description:

Cable glands can be used to seal cables of different diameters safely against dust and water.They may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Hangzhou Gordon is a professional plastic & Brass cable gland supplier located in Hangzhou China.

PACKING:

1. Common packing: Polybag+Label+Export Carton

2. Customized packing: Header card packing, Blister with card packing, Double Blister packing, Canister packing, other packing can be supplied according to customers requirement.

TRADE TERM:

1. Payment:L/C, T/T, D/A, D/P, Western Union, Paypal…etc.
2. Supply ability: 20ft Container/Month
3. OEM: accept
4. Delivery: •By Courier: 1-2 Working days by special offer
•By Air: 4-7 Working days at appointed airport
•By Sea:20-25 Working days at appointed port

Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 20 days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.

With high-quality products and advanced technical equipment, our company has become a bright star in the IP68 Water Proof Mg50 Nylon Plastic Wire Cable Glands industry. We pay special attention to the importance of the strategy of strengthening the company with talents in the future development, stimulate the creativity and cohesion of our employees, and constantly put forward new ideas to lead new development. We firmly believe in the scientific and technological achievements brought about by diligent research and the improvement of product functions brought about by innovation.
