NPT Type Nylon (PA) Waterproof Cable Glands

Based on years of rich experience and professional technology, we are able to provide superior cable tie 2.5x100mm, Metal Flexible Conduit, liquid type conduit and the most complete service to our customers. We pride ourselves as a company that not only conducts business with a high standard and strong sense of ethics, but as a company that builds relationships of trust with stakeholders and creates extensive contributions to society by providing superior products and services. We uphold the spirit of "integrity, collaboration, innovation, and transcendence". The development strategy put forward enables us to have a clear development route and unique business philosophy in the face of opportunities and challenges. Continuous investment in innovation provides a strong guarantee for our company to grasp the consumer trend and lead the development direction of the industry.

Material:	PA(NYLON),UL 94V-2
Hermetic seal:	NBR,EPDM
Working temperature:	-40℃ to 100℃ in static state instantaneous heat resistance up to 120℃ -20℃ to 80℃ in dynamic state instantaeous heat resistance up to 100℃
Color:	Black, Light Grey, can Customize, Multi-Hole can customize.
Thread:	Metric, PG, NPT, G
Protection:	IP68-5Bar
Certification:	SGS CE ROHS IP68 REACH

Thread	Clamp Range	H	GL	Wrench Size	Item No.	Item No.
	mm	mm	mm	mm	grey	black
3/8"NPT	4-8	22	15	22/19	N3808	N3808B
3/8"NPT	2-6	22	15	22/19	N3806	N3806B
1/2"NPT	6-12	27	13	24	N12612	N12612B
1/2"NPT	5-9	27	13	24	N1209	N1209B
1/2"NPT	10-14	28	13	27	N1214	N1214B
1/2"NPT	7-12	28	13	27	N12712	N12712B
3/4"NPT	13-18	31	14	33	N3418	N3418B
3/4"NPT	9-16	31	14	33	N3416	N3416B
1"NPT	18-25	39	19	42	N10025	N10025B
1"NPT	13-20	39	19	42	N10020	N10020B
1 1/4"NPT	18-25	39	16	46/42	N11425	N11425B
1 1/4"NPT	13-20	39	16	46/42	N11420	N11420B
1 1/2"NPT	22-32	48	20	53	N11232	N11232B
1 1/2"NPT	20-26	48	20	53	N11226	N11226B

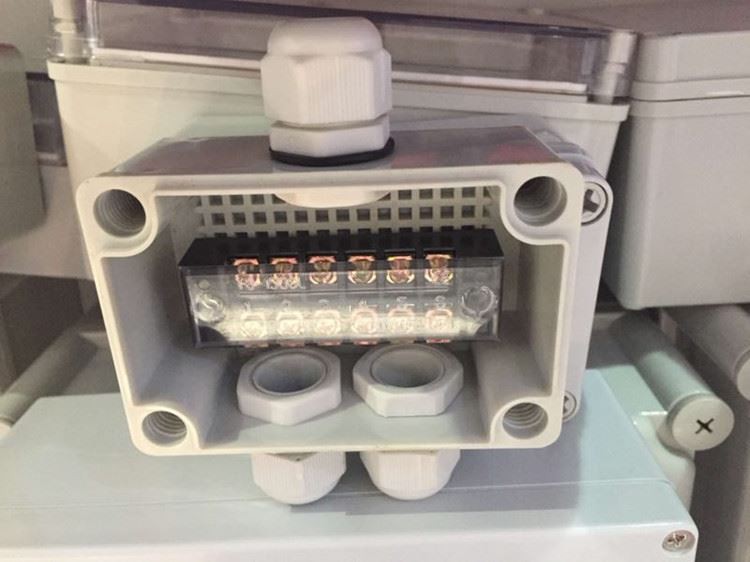

Product Application:

Product description:

Cable glands can be used to seal cables of different diameters safely against dust and water.They may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Hangzhou Gordon is a professional plastic & Brass cable gland supplier located in Hangzhou China.

PACKING

1. Common packing: Polybag+Label+Export Carton

2. Customized packing: Header card packing, Blister with card packing, Double Blister packing, Canister packing, other packing can be supplied according to customers requirement.

TRADE TERM:

1. Payment:L/C, T/T, D/A, D/P, Western Union, Paypal…etc.
2. Supply ability: 20ft Container/Month
3. OEM: accept
4. Delivery: •By Courier: 1-2 Working days by special offer
•By Air: 4-7 Working days at appointed airport
•By Sea:20-25 Working days at appointed port

1.Are you Factory or exported trading company ?

-- Factory .

2.Samples for free ?

--yes

3. MOQ & Shipping solution

No MOQ for common packed ties (black&white)

Express ,FOB,CIF,DDP are available .

If order quanity <1 carton,it is best to purchase in our official retails store .

1~5 cartons: Shipping by express

5~15cartons: Shipping by air

>15cartons: shipping by sea .

4.Near Port ?

Usually we choose Port Ningbo ,but Shanghai and Gunagzhou are also OK .

5.Delivery time

days/100 cartons

Our company regards the quality of products as the foundation of the company's existence. Every batch of NPT Type Nylon (PA) Waterproof Cable Glands are strictly inspected before leaving the factory to ensure the quality of products. And then E-mail us your specifications or inquiries today. Desire to collect requests of your stuff and produce the long-term co-operation partnership.
