Patent Mpve Conduit Plastic ID800mm Drainage Pipe Fitting

Product name: Quick conduit fitting connector/ Fast-Fit Straight Conduit Fittings/ PA Nylon Insulating Corrugated Flexible Conduit fittings
Thread: Metric thread/PG/G thread
Product material: the use of UL certified nylon PA66 raw materials

Send Inquiry

Description

Our company insists on the objective, practical and pragmatic attitude, constantly absorbing productivity, technology and seriously researching and developing various reusable metal zip ties, cable tie tool, brass thread enlarger. We will sincerely carry out extensive cooperation with friends from all walks of life with high-quality products and the most complete after-sales service, and jointly create a better future! We have been adhering to the enterprise spirit of "quality first, customer first, excellent quality, excellence, and forge ahead, to provide customers with a "one-stop" service system integrating accurate packaging positioning, printing design, production and processing, exquisite packaging, and shipping agency. .

Product name:	Quick conduit fitting connector/ Fast-Fit Straight Conduit Fittings/ PA Nylon Insulating Corrugated Flexible Conduit fittings
Thread:	Metric thread/PG/G thread
Product material:	the use of UL certified nylon PA66 raw materials
Product color:	Black , gray or other colors can be customized
Temperature Range:	Min-40℃, Max100℃, Short-term 120℃
Product characteristics:	in the latch body of special design, handling just plug
Method of application:	The product can access equipment box, can also be selected according to the thread into the outlet for the internal thread of the electrical equipment, simply wave tube into the interface can be

Competitive Advantage:

+Quick Delivery: 10days for one 40ft container.
+ Good Quality: ISO/UL certificate approval

+Best Service: fast delivery, strong package, competitive Price,timely and effective communication

+Powerful Solution: fast and effective solution to problem.

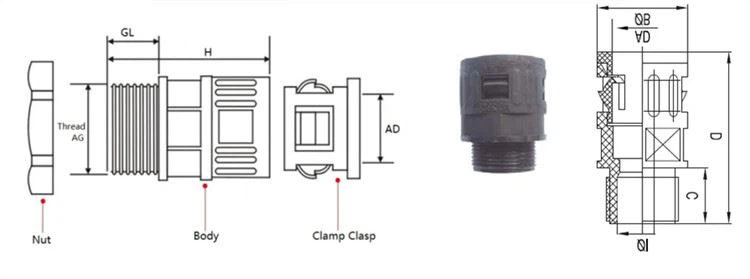

Thread	AD	ØD	H	GL	Wrench Size	Item No.		Pack
ØD1	mm	mm	mm	mm	mm	Black	Grey	Qty/Bag
PG7	10	7	25	10	15.5	GD-PG7B-10	GD-PG7-10	100
PG7	13	8	25	9	18	GD-PG7B-13	GD-PG7-13	100
PG9	13	10	25	9	18	GD-PG9B-13	GD-PG9-13	100
PG11	13	10	25	9	18	GD-PG11B-13	GD-PG11-13	100
PG11	15.8	13	27	10	21	GD-PG11B-15.8	GD-PG11-15.8	100
PG13.5	15.8	13	27	10	21	GD-PG13.5B-15.8	GD-PG13.5-15.8	50
PG13.5	18.5	13.5	28	11	24	GD-PG13.5B-18.5	GD-PG13.5-18.5	50
PG13.5	21.2	16	31	12	27	GD-PG13.5B-21.2	GD-PG13.5-21.2	50
PG16	21.2	17	31	12	27	GD-PG16B-21.2	GD-PG16-21.2	50
PG21	28.5	23.5	34	13	34	GD-PG21B-28.5	GD-PG21-28.5	25
PG29	34.5	30.5	36.5	12	40	GD-PG29B-34.5	GD-PG29-34.5	25
PG36	42.5	36.5	39	14	48	GD-PG36B-42.5	GD-PG36-42.5	10
PG48	54.5	48.5	41	15	59	GD-PG48B-54.5	GD-PG48-54.5	10

Thread	AD	ØD	H	GL	Wrench Size	Item No.		Pack
ØD1	mm	mm	mm	mm	mm	Black	Grey	Qty/Bag
M12x1.5	10	7	25	10	15.5	GD-M12B-10	GD-M12-10	100
M12x1.5	13	8	25	9	18	GD-M12B-13	GD-M12-13	100
M16x1.5	13	10	25	9	18	GD-M16B-13	GD-M16-13	100
M16x1.5	15.8	12.5	27	10	21	GD-M16B-15.8	GD-M16-15.8	100
M20x1.5	15.8	13	27	10	21	GD-M20B-15.8	GD-M20-15.8	50
M20x1.5	18.5	13.5	28	11	24	GD-M20B-18.5	GD-M20-18.5	50
M20x1.5	21.2	16	31	12	27	GD-M20B-21.2	GD-M20-21.2	50
M25x1.5	21.2	17	31	12	27	GD-M25B-21.2	GD-M25-21.2	25
M25x1.5	28.5	20.5	34	13	34	GD-M25B-28.5	GD-M25-28.5	25
M32x1.5	28.5	23.5	34	13	34	GD-M32B-28.5	GD-M32-28.5	25
M32x1.5	34.5	27.5	36.5	12	40	GD-M32B-34.5	GD-M32-34.5	25
M40x1.5	34.5	30.5	36.5	12	40	GD-M32B-34.5	GD-M32-34.5	10
M40x1.5	42.5	35	39	14	48	GD-M40B-42.5	GD-M40-42.5	10
M50x1.5	42.5	36.5	39	14	49	GD-M50B-42.5	GD-M50-42.5	10
M50x1.5	54.5	45	41	14	59	GD-M50B-54.5	GD-M50-54.5	10
M63x1.5	54.5	48.5	41	14	59	GD-M63B-54.5	GD-M63-54.5	10

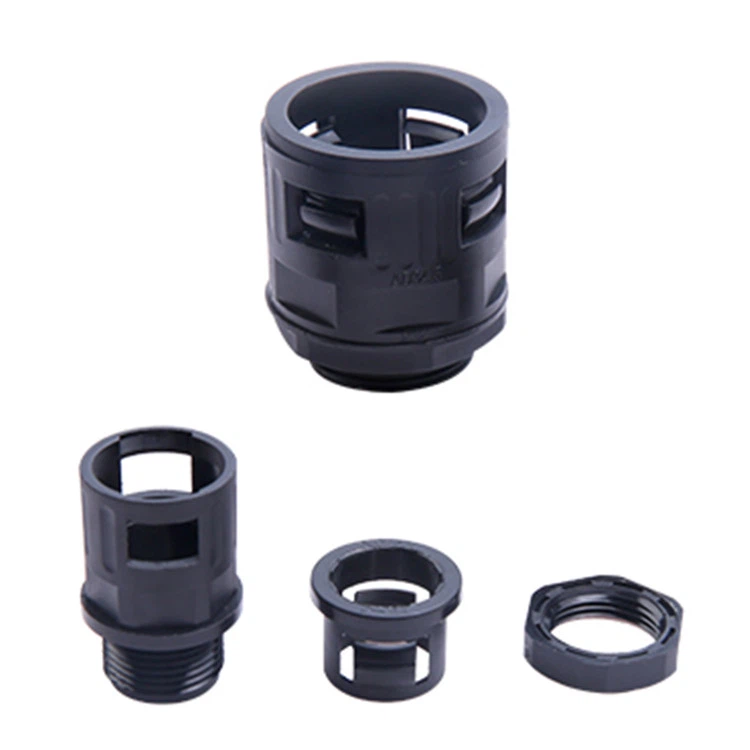

HTB1XRoblOCYBuNkSnaVq6AMsVXaE

Product advantage:

Dustproof

Salt resistance

Easy install,easy remove.

More convenient to connect with flexible pipe and corrugated piple.

Quick conduit fitting connectors are the fittings of the flexible pipes,which can be either connected with the housing of equipments or connected with electric equipment with inner threaded access hole as per the thread selected.Simply insert the felxible pipe into the union.

PACKING:

TRADE TERM:

1. Payment:L/C, T/T, D/A, D/P, Western Union, Paypal…etc.
2. OEM: accept
4. Delivery: •By Courier: 1-2 Working days by special offer
•By Air: 4-7 Working days at appointed airport
•By Sea:20-25 Working days at appointed port

Our Services

1. Superior Quality:

All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.

2. Competitive Prices:

We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.

3. Convenience For Purchasing:

Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clamps educing bushings and so on.

4. Good Services:

All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.

FAQ

Q1. Can the logo be customized on your products?

A1. Yes, it’s no problem. Meantime, demands of OEM and OEM are welcome.
Q2. What’s the packing condition or your products?
A2. For cable conduits, we coil and pack them by fabric belts, then put each roll on wooden pallet or in wooden cases; for conduit pipe fittings, fasteners and cable glands, we pack them in plastic bags first, then put bags in cartons, then put cartons on wooden pallets or in wooden cases.
Q3. Is the price can you give me a discount?
A3. Yes, for more quantity products, you will get a good discount.

Q4. What’s your price term?
A4. Usually we quoted price on FOB SHANGHAI,CHINA, we also accept EXW, CIF any seaport, CFR, and DDU. We also can provide door to door service.
Q5. What’s your payment term?
A5. We can accept T/T, western union and L/C, D/T, PAYPAL or Alibaba order.

Q6. What shipping method can i choose?

A6. For samples or small quantity products, you can choose international express or by air. For bacth of products, you can choose by air or by sea.
