Uncoated Stainless Steel Ladder Cable Ties (Multi Lock Type)
Product name: Stainless steel cable tie ladder type
Material: 201/304/316 Stainless Steel
Coating: Acceptable; Polyester/Epoxy
Thickness: 0.25mm
Description
To constantly improve the management system by virtue of the rule of 'sincerely, good faith and quality are the base of enterprise development', we widely absorb the essence of related products internationally, and constantly develop new products to meet the demands of customers for M metal cable gland, brass thread enlarger, reusable ss cable ties. Our company has seized the important opportunity to enter the international market and achieved great leap forward development. Our pursuit is to keep learning, innovate, and provide our customers with efficient production solutions and quality service. We keep our feet on the ground, accumulate experience and capital little by little, and build a solid and profound enterprise foundation.
| Product name: |
Stainless steel cable tie ladder type |
| Material: | 201/304/316 Stainless Steel |
| Coating: | Acceptable; Polyester/Epoxy |
| Thickness: | 0.25mm |
| Working Temp: | -80℃ to 150℃ |
| Function: | Electrical Applications |
| Application: | Cable Protection |
| Advantages: | Fast Delivery |
| Usage: |
bundle cables, wires, conducts, plants or other things in the industry of electrical & electronic, lighting, hardware, pharmaceutical, chemical, computer, machinery, agriculture, etc. |
| OEM/ODM: | Customization Service Provided |
| PART NO. |
APPROX.LENGTH |
APPROX.WIDTH |
MAX.BUNDLE DIA. |
MIN.LOOP TENSILE |
|
MM(INCH) |
MM(INCH) |
MM(INCH) |
STRENGTH N(LBS) |
|
|
GD-7x150 |
150(5.9) |
7（0.276） |
33(1.3) |
600（135） |
|
GD-7x225 |
225(8.86) |
57(2.2) |
||
|
GD-7x300 |
300(11.8) |
81(3.2) |
||
|
GD-7x335 |
335(13.2) |
92(3.6) |
||
|
GD-7x400 |
400(15.7) |
113(4.4) |
||
|
GD-7x450 |
450(17.7) |
129(5.1) |
||
|
GD-7x490 |
490(19.3) |
141(5.6) |
||
|
GD-7x550 |
550(21.7) |
161(6.3) |
||
|
GD-7x600 |
600(23.6) |
176(6.9) |
||
|
GD-7x650 |
650(25.6) |
192(7.6) |
||
|
GD-7x700 |
700(27.6) |
208(8.2) |
||
|
GD-7x750 |
750(29.5) |
224(8.8) |
||
|
GD-7x800 |
800(31.5) |
240(9.4) |
||
|
GD-12x150 |
150(5.9) |
12（0.472） |
33(1.3) |
1800（405） |
|
GD-12x225 |
225(8.86) |
57(2.2) |
||
|
GD-12x300 |
300(11.8) |
81(3.2) |
||
|
GD-12x335 |
335(13.2) |
92(3.6) |
||
|
GD-12x400 |
400(15.7) |
113(4.4) |
||
|
GD-12x450 |
450(17.7) |
129(5.1) |
||
|
GD-12x490 |
490(19.3) |
141(5.6) |
||
|
GD-12x550 |
550(21.7) |
161(6.3) |
||
|
GD-12x600 |
600(23.6) |
176(6.9) |
||
|
GD-12x650 |
650(25.6) |
192(7.6) |
||
|
GD-12x700 |
700(27.6) |
208(8.2) |
||
|
GD-12x750 |
750(29.5) |
224(8.8) |
||
|
GD-12x800 |
800(31.5) |
240(9.4) |

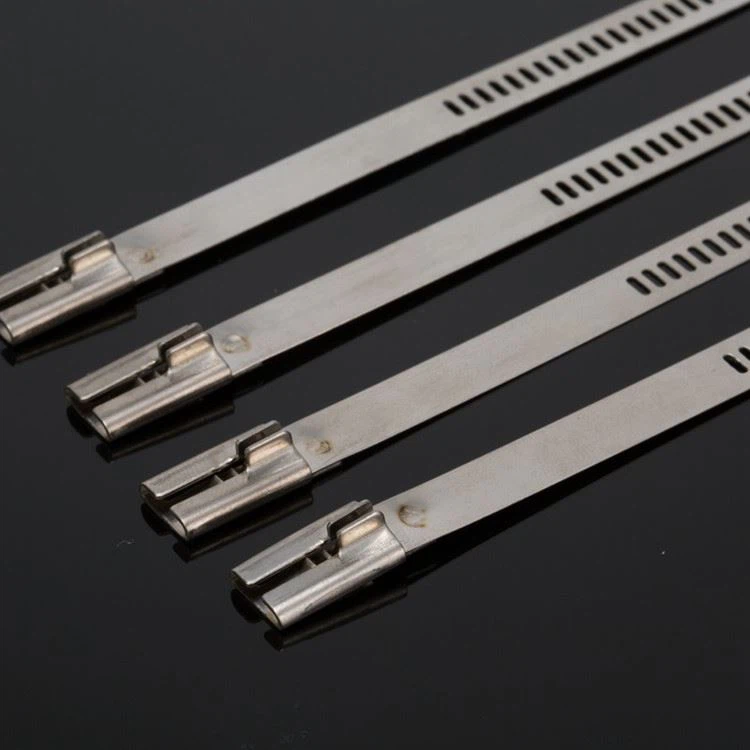

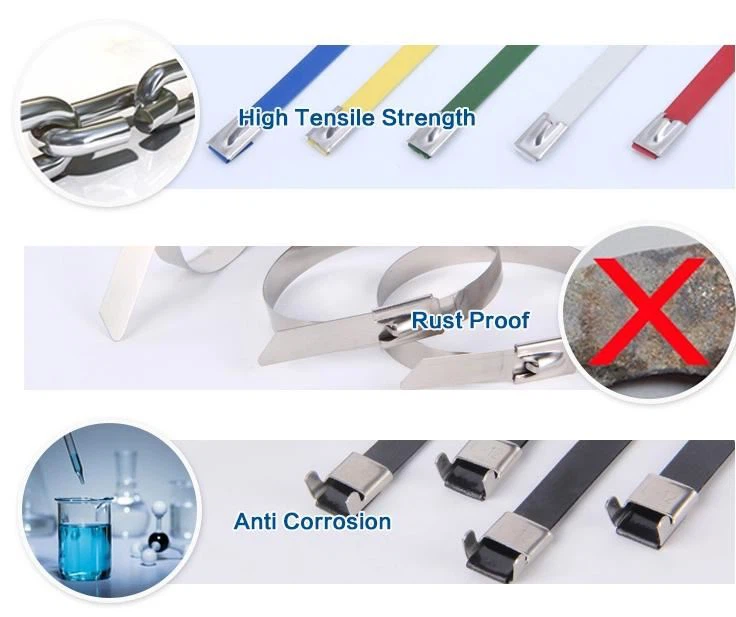

Stainless Steel Cable Tie
* Self-locking head design speeds installation and locks into place at any length along the tie body
* Provides a strong,durable method of cable bunding
* Can be used in a wide range of indoor,outdoor and underground(including direct burial) applications
* Smooth surface and rounded edges assures cable protection and worker safety
* Available in AISI 304 stainless steel for geneeral-purpose applications
* Available in AISI 316 stainless steel for the most corrosive environments
PACKING
Common packing: 100Pcs+ Polybag+Label+Export Carton
2. Customized packing: Header card packing, Blister with card packing, Double Blister packing, Canister packing, other packing can be supplied according to customers requirement.
1.Are you factory or trading company?
Yes,we are manufacturing in Zhejiang ,China. We can give you the competitive price & after sale service.
2.Could I print my own logo on the bag?
Yes,your logo can be printed as your demand, we offer OEM service.
4.What terms of payment & price condition &do you accept & use?
Payment terms:T/T,LC,Paypal,Western union,etc.
Price conditions:FOB(Shanghai & Ningbo),EXW,C&F etc.
5.What money do you accept for wire transfer?
USD,CNY/RMB,EURO etc.
6. How many days will it take to delivery the goods?
It denpends on your order quantity,small quantity will delivery the goods in 7-10days,if your order is big enough ,it make take 10~15 days.
We have passed the quality system certification, with scientific and perfect management system, can meet the various needs of customers for Uncoated Stainless Steel Ladder Cable Ties (Multi Lock Type). The rise and fall of an enterprise depends on its ability to compete in the market, and will ultimately focus on the competition of talents. With our unique production experience and enterprise spirit, we strictly control the quality and make our products keep improving.
