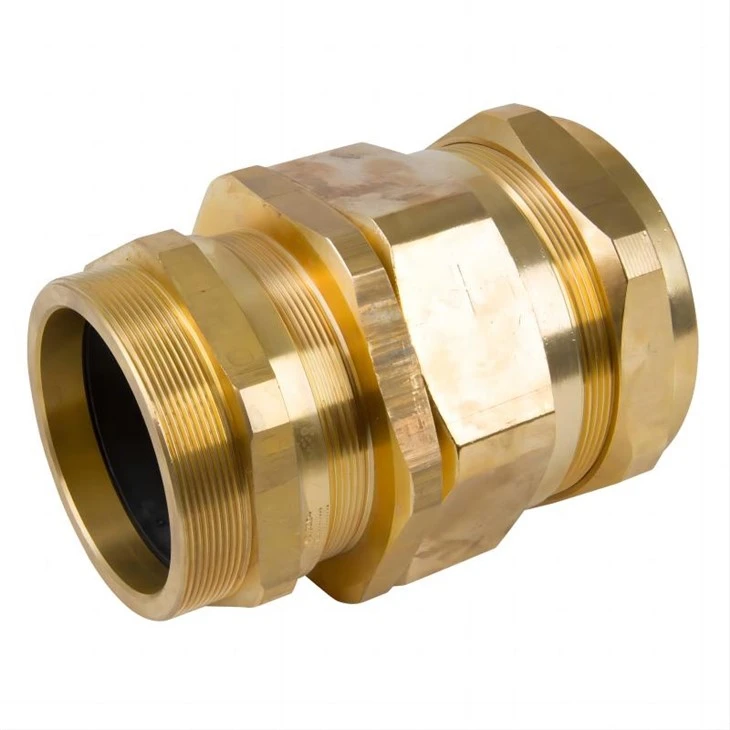

20mm Brass Cable Gland
20mm Brass Cable Gland is a high performance cable gland made of brass. Its advantage lies in its excellent corrosion resistance and weather resistance, ensuring stability and reliability in harsh environments. Brass's high electrical conductivity and resistance to electrical wear make it ideal for electrical connections while complying with high standards of safety and reliability.
Hangzhou Gordon Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 20mm brass cable gland in China, also supports custom service. Please feel free to wholesale advanced 20mm brass cable gland made in China here from our factory.
20mm brass cable gland is a device used to fix and seal cables. It is usually made of brass and has the characteristics of corrosion resistance, high temperature resistance and wear resistance. In the electrical industry, it has the following
advantages and features:
Can adapt to different types and specifications of cables, including armored cables, non-armored cables, lead-sheathed cables, etc., providing flexible selection and installation.
It can prevent the cable from moving or twisting inside the housing, ensuring the stability and reliability of the cable.
It can prevent water, oil, dust, gas and other external substances from entering the cable or shell, and protect the cable and equipment from damage.
It can be used in hazardous areas, such as flammable, explosive, high pressure, high temperature and other environments to provide safe cable connections and sealing.
It can improve the tensile strength and bending resistance of the cable and extend the service life of the cable.
| Thread: | PG,Metric,G,and NPT thread |
| Materials: | With nickel plated for A.C.F parts,approved Nylon PA66(Flammability 94V-2) for E parts, EPDM rubber for B.D parts, (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc). |
| Protection degree: | IP68 |
| Working temperature: | -40℃ to 100℃ |
| Features: | The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency. |
Product Parameter
Custom Metal glands
Tailored to Diverse Requirements, our metal connectors offer flexible solutions for a range of needs. With various size options, customers can customize specifications for specific applications, ensuring optimal performance. Regardless of project size, we are dedicated to delivering adaptable solutions to meet the unique demands of each industry.
| Thread | Clamp Range | H | GL | Wrench Size | Item No. |
| mm | mm | mm | mm | ||
| PG7 | 3-6,5 | 19 | 10 | 14 | P0707BRL |
| PG7 | 44962 | 19 | 10 | 14 | P0705BRL |
| PG9 | 45024 | 20 | 10 | 17 | P0908BRL |
| PG9 | 44963 | 20 | 10 | 17 | P0906BRL |
| PG11 | 45056 | 21 | 10 | 20 | P1110BRL |
| PG11 | 44992 | 21 | 10 | 20 | P1107BRL |
| PG13,5 | 45089 | 22 | 10 | 22 | P13512BRL |
| PG13,5 | 45055 | 22 | 10 | 22 | P13509BRL |
| PG16 | 45213 | 23 | 10 | 24 | P1614BRL |
| PG16 | 45119 | 23 | 10 | 24 | P1612BRL |
| PG21 | 13-18 | 25 | 12 | 30 | P2118BRL |
| PG21 | 45185 | 25 | 12 | 30 | P2116BRL |
| PG29 | 18-25 | 29 | 12 | 40 | P2925BRL |
| PG29 | 13-20 | 29 | 12 | 40 | P2920BRL |
| PG36 | 22-32 | 35 | 12 | 50 | P3632BRL |
| PG36 | 20-26 | 35 | 15 | 50 | P3626BRL |
| PG42 | 32-38 | 37 | 15 | 57 | P4238BRL |
| PG42 | 25-31 | 37 | 15 | 57 | P4231BRL |
| PG48 | 37-44 | 38 | 15 | 64 | P4844BRL |
| PG48 | 29-35 | 38 | 15 | 64 | P4835BRL |
Products Application
It is a device used to fix and seal cables. It is usually made of brass and has the characteristics of corrosion resistance, high temperature resistance and wear resistance. The specific applications of this product include the following aspects:
In the electrical industry, it can be used to connect and protect various types and specifications of cables, such as armored cables, non-armored cables, lead-sheathed cables, etc. The brass cable gland prevents the cable from moving or twisting inside the housing, ensuring cable stability and reliability.
In other industries, it can also be used to fix and seal various cables, such as communication cables, control cables, instrument cables, etc.brass cable gland can improve the tensile strength and bending resistance of the cable and extend the service life of the cable. It can also choose different models and materials according to different cables and environments to meet different needs.
Professional team
7x24 hours delivery
834M
Total Freelancer
732M
Positive Review
90M
Order recieved
236M
Projects Completed
Cable Glands Packaging Customization
| Packaging Options： | Description |
| Header Card Packing： | Customized packaging with header cards for branding. |
| Blister with Card Packing： | Secure and visually appealing blister packaging. |
| Double Blister Packing： | Enhanced protection with double-layered blister. |
| Canister Packing： | Convenient packaging in canisters for easy storage. |
| Other Customized Packaging Options： | Tailored packaging solutions based on customer needs. |
FAQ：
1. What size is a 20mm cable gland?
The term "20mm cable gland" refers to a cable gland designed to accommodate cables with an outer diameter of 20mm. It ensures a secure and sealed entry point for cables through panels or enclosures, commonly used in electrical and industrial applications.
2. What is the difference between M20 and M20s cable gland?
The "M" in M20 refers to metric threading. M20 cable glands have standard metric threads. On the other hand, "M20s" may indicate a special or modified version with specific features tailored for unique applications, such as enhanced sealing or additional functionalities.
3. How do I know my cable gland size?
Cable gland size is determined by the outer diameter of the cable it needs to accommodate. Measure the widest part of the cable and choose a cable gland with a size equal to or slightly larger than this measurement to ensure a proper fit.
4. What is a 20s cable gland?
A "20s" cable gland is not a standardized term. It may refer to a specific type or model of cable gland designed for use with cables of 20mm diameter, but the exact specifications would depend on the manufacturer and product line.
5. What size is the a 20s?
The size of a "20s" cable gland would typically correspond to its compatibility with cables having a 20mm outer diameter. Specific dimensions and features may vary, so it's essential to check the product specifications provided by the manufacturer.
6. What is the difference between PG and metric cable glands?
PG (PanzerGewinde) and metric cable glands differ in their threading standards. PG glands have a specific German standard for threads, while metric glands use standard metric threads. The choice between them depends on the threading system preferred or specified for a particular application or region.
