PG Long Thread Nylon Cable Glands
Long Thread Structure: Features an extended PG threaded section for secure installation through thicker enclosure panels and electrical boxes.
PA Nylon Construction: Made from nylon with good electrical insulation, low weight, and corrosion resistance for cable entry applications.
Sealing & Cable Fixing: The compression sealing ring and internal clamping structure work together to seal around the cable and hold it in position after tightening.
Multiple PG Sizes: Available in different PG thread sizes and cable clamping ranges to match various cable diameters and enclosure configurations.
Hangzhou Gordon Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of pg long thread nylon cable glands in China, also supports custom service. Please feel free to wholesale advanced pg long thread nylon cable glands made in China here from our factory.

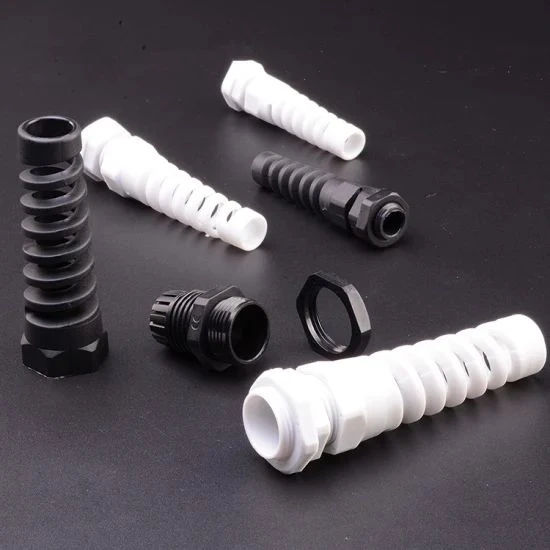

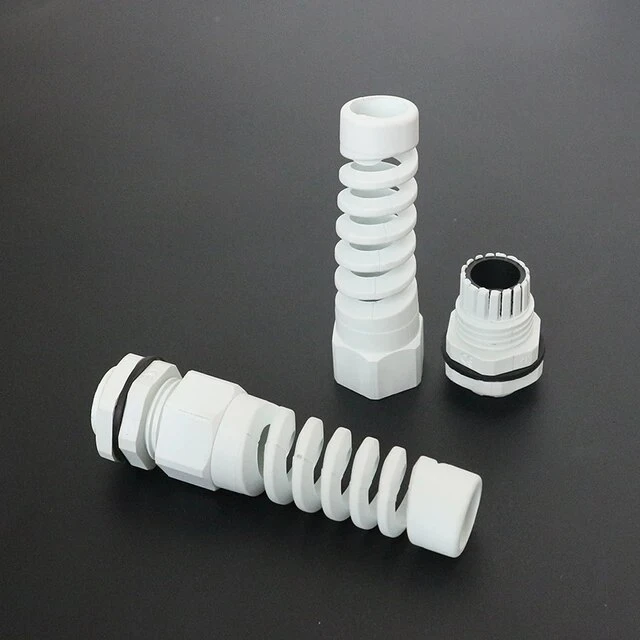

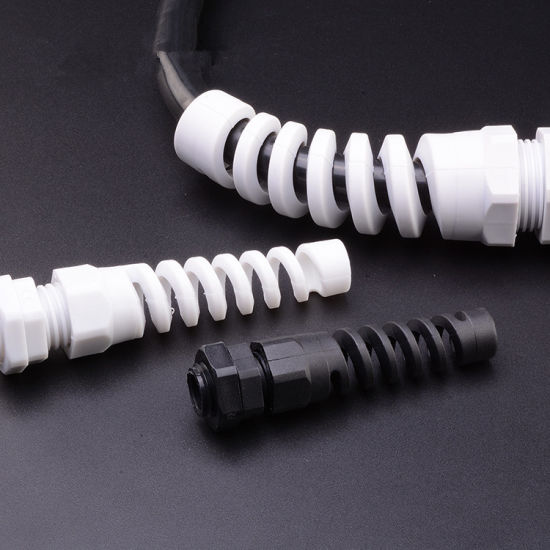

PG Long Thread Nylon Cable Glands Performance
Extended Thread Design:
The long threaded section provides increased thread engagement, making the gland suitable for thicker enclosure panels and mounting locations with greater installation depth.
Secure Cable Clamping:
The internal clamping structure grips the cable jacket after tightening, helping prevent axial movement and reducing mechanical stress on internal cable connections.
Effective Sealing Structure:
The sealing ring is compressed around the cable during cap tightening, helping close the clearance between the cable and gland body against dust and moisture ingress.
PA Nylon Construction:
The nylon gland body combines electrical insulation with low weight and corrosion resistance, making it suitable for electrical enclosures, control cabinets, and industrial equipment.
Customization Service
Long Thread & Panel Installation
The extended threaded section is designed for cable entry applications where standard thread length may not provide sufficient engagement with the enclosure panel.
- Extended Thread Length: Provides additional thread engagement for mounting through thicker enclosure walls or panels.
- Secure Panel Fixing: The gland body is fixed with a compatible locknut, keeping the cable entry point stable after installation.
- Mounting Compatibility: Suitable for electrical cabinets, junction boxes, control panels, and enclosures with increased panel thickness.
- Clean Cable Entry: The threaded body passes through the prepared mounting hole while the locknut secures the gland from the opposite side.
Sealing & Cable Retention
The sealing and clamping components work together to secure the cable while closing the gap around the cable entry point.
- Compression Sealing: Tightening the cap compresses the sealing ring around the cable outer jacket to form a close sealing interface.
- Cable Clamping: The internal clamping structure grips the cable and helps prevent unwanted movement after installation.
- Strain Relief: The gland transfers pulling and bending forces away from the cable connection inside the enclosure.
- Protection Against Ingress: When the correct cable diameter and installation method are used, the sealing structure helps limit dust and moisture entering through the cable opening.
FAQ
What information is needed to select a PG Long Thread Nylon Cable Glands?
Provide the PG thread size, cable outer diameter, enclosure panel thickness, and required thread length. These dimensions determine whether the gland can be properly mounted and accommodate the cable.
Can the thread length be customized for a specific enclosure?
Yes. For project orders, the threaded section can be produced to a specified length when the required dimensions and production quantity are confirmed.
Is a long-thread gland necessary for every electrical enclosure?
No. It is mainly useful where the panel or enclosure wall requires greater thread engagement than a standard gland provides. For thin panels, a standard-thread version may be sufficient.
Hot Tags: pg long thread nylon cable glands, China, suppliers, manufacturers, factory, custom, wholesale, 20mm nylon gland, M cable gland, nylon glands, Nylon PA66 Spiral Cable Glands, polyamide cable gland, ventilation cable gland
| PART NO. | APPROX.LENGTH | APPROX.WIDTH | MAX.BUNDLE DIA. | MIN.LOOP TENSILE |
| MM(INCH) | MM(INCH) | MM(INCH) | STRENGTH N(LBS) | |
| GDCT-4.6x150 | 150(5.9) | 4.6(0.181) | 37(1.46) | 600(135) |
| GDCT-4.6x200 | 200(7.87) | 50(1.97) | ||
| GDCT-4.6x250 | 250(9.84) | 63(2.48) | ||
| GDCT-4.6x300 | 300(11.8) | 76(2.99) | ||
| GDCT-4.6x350 | 350(13.78) | 89(3.50) | ||
| GDCT-4.6x400 | 400(15.75) | 102(4.02) | ||
| GDCT-4.6x450 | 450(17.72) | 115(4.53) | ||
| GDCT-4.6x500 | 500(19.69) | 128(5.04) | ||
| GDCT-4.6x550 | 550(21.65) | 141(5.55) | ||
| GDCT-4.6x600 | 600(23.62) | 154(6.06) | ||
| PART NO. | APPROX.LENGTH | APPROX.WIDTH | MAX.BUNDLE DIA. | MIN.LOOP TENSILE |
| MM(INCH) | MM(INCH) | MM(INCH) | STRENGTH N(LBS) | |
| GDCT-7.9x150 | 150(5.9) | 7.9(0.311) | 37(1.46) | 800(180) |
| GDCT-7.9x200 | 200(7.87) | 50(1.97) | ||
| GDCT-7.9x250 | 250(9.84) | 63(2.48) | ||
| GDCT-7.9x300 | 300(11.8) | 76(2.99) | ||
| GDCT-7.9x350 | 350(13.78) | 89(3.50) | ||
| GDCT-7.9x400 | 400(15.75) | 102(4.02) | ||
| GDCT-7.9x450 | 450(17.72) | 115(4.53) | ||
| GDCT-7.9x500 | 500(19.69) | 128(5.04) | ||
| GDCT-7.9x550 | 550(21.65) | 141(5.55) | ||
| GDCT-7.9x600 | 600(23.62) | 154(6.06) | ||
| GDCT-7.9x650 | 650(25.59) | 167(6.57) | ||
| GDCT-7.9x700 | 700(27.56) | 180(7.09) | ||
| GDCT-7.9x750 | 750(29.53) | 191(7.52) | ||
| GDCT-7.9x800 | 800(31.5) | 193(7.59) | ||
| PART NO. | APPROX.LENGTH | APPROX.WIDTH | MAX.BUNDLE DIA. | MIN.LOOP TENSILE |
| MM(INCH) | MM(INCH) | MM(INCH) | STRENGTH N(LBS) | |
| GDCT-12x200 | 200(7.87) | 12(0.472) | 50(1.97) | 1200(270) |
| GDCT-12x250 | 250(9.84) | 63(2.48) | ||
| GDCT-12x300 | 300(11.8) | 76(2.99) | ||
| GDCT-12x350 | 350(13.78) | 89(3.50) | ||
| GDCT-12x400 | 400(15.75) | 102(4.02) | ||
| GDCT-12x450 | 450(17.72) | 115(4.53) | ||
| GDCT-12x500 | 500(19.69) | 128(5.04) | ||
| GDCT-12x550 | 550(21.65) | 141(5.55) | ||
| GDCT-12x600 | 600(23.62) | 154(6.06) | ||
| GDCT-12x650 | 650(25.59) | 167(6.57) | ||
| GDCT-12x700 | 700(27.56) | 180(7.09) |
