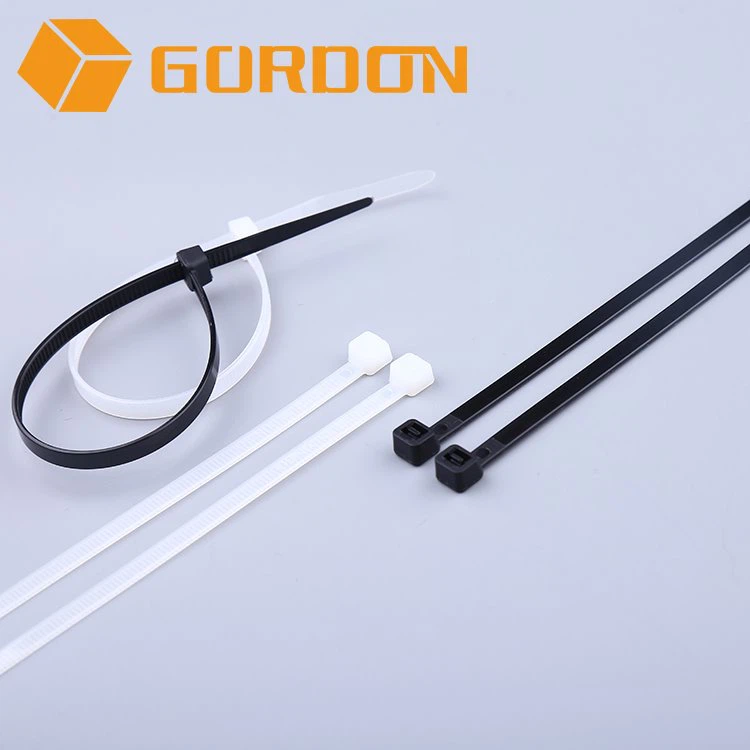

Plastic Cable Tie
The design of head guarantee a high tensile strength while allowing a low insertion and pull through force. Rounded safety edges eliminate insulation damage.
Hangzhou Gordon Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of plastic cable tie in China, also supports custom service. Please feel free to wholesale advanced plastic cable tie made in China here from our factory.
Plastic Cable Tie Product Description
Material: Made of high quality Nylon 66, UL Flammability 94V-2.
Usage: Locking head nylon cable ties are perfect to permanently secure items in place
Feature: Acid, Erosion Resistant, Good Insulation and not apt to age
Color: Natural(or white,standard color), UV Black, Colorful
Operating Temperature: -40℃ to 85℃
Package: default package:100pcs/bag, your request is also welcomed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Shipping port: Ningbo or ShangHai
Delivery Time: 1.By Express: 4-5 Working days by special offer
2.By Air: 7 Working days at appointed airport
3. By Sea: 20-25 Working days at appointed port

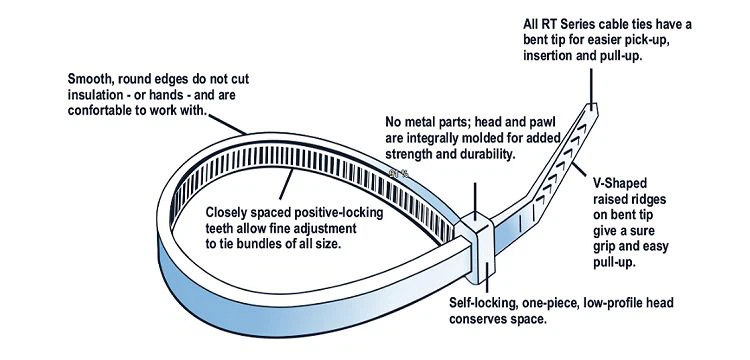

Structure: The design of head guarantee a high tensile strength while allowing a low insertion and pull through force. Rounded safety edges eliminate insulation damage.
Feature: Flame-retardant(94V-2), Heat-resistant, UV resistant are available.
Certificate: RoHS, CE, Material UL Test, UV Resistance Test, Flame Retardant Test, High And Low Temperature Test.
Usage: First, the cable is bundled in the nylon cable tie; Next,the tail of the nylon cable tie is clamped by the tool; Finally, tighten with tool
Application: Used to bundle cables, wires, conducts, plants or other things in the industry of electrical & electronic, lighting, hardware, pharmaceutical, chemical, computer, machinery, agriculture, etc.
Model: 2.5x80mm ~ 12.0x1200mm
Packing: Stander 100pieces/bags
G.W.: About 19kgs
N.W.: About 18kgs
Carton Means: Stander 54*32*30(cm)
Tensile Strength:18lbs(8kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-2.5X60 | 2.4" | 60 | 2.5 | 2-11 |
GD-2.5X80 | 3.2" | 80 | 2-16 | |
GD-2.5X100 | 4.0" | 100 | 2-22 | |
GD-2.5X120 | 4.7" | 120 | 2-30 | |
GD-2.5X150 | 6.0" | 150 | 2-35 | |
GD-2.5X160 | 6.3" | 160 | 2-40 | |
GD-2.5X200 | 8.0" | 200 | 3-50 | |
Tensile Strength:40lbs(18kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-3.6X140 | 5.5" | 140 | 3.6 | 3-33 |
GD-3.6X150 | 6.0" | 150 | 3-35 | |
GD-3.6X180 | 7.1" | 180 | 3-42 | |
GD-3.6X200 | 8.0" | 200 | 3-50 | |
GD-3.6X250 | 10" | 250 | 3-65 | |
GD-3.6X280 | 11" | 280 | 3-70 | |
GD-3.6X300 | 12" | 300 | 3-80 | |
GD-3.6X370 | 14.6" | 370 | 3-105 | |
Tensile Strength:50lbs(22kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-4.8X120 | 4.7" | 120 | 4.8 | 3-30 |
GD-4.8X160 | 6.3" | 160 | 3-40 | |
GD-4.8X180 | 7.1" | 180 | 3-42 | |
GD-4.8X190 | 7.5" | 190 | 3-46 | |
GD-4.8X200 | 8.0" | 200 | 3-50 | |
GD-4.8X250 | 10" | 250 | 3-65 | |
GD-4.8X280 | 11" | 280 | 3-70 | |
GD-4.8X300 | 12" | 300 | 3-80 | |
GD-4.8X350 | 14" | 350 | 3-90 | |
GD-4.8X360 | 14.2" | 360 | 3-94 | |
GD-4.8X370 | 14.6" | 370 | 3-98 | |
GD-4.8X380 | 15" | 380 | 3-102 | |
GD-4.8X400 | 16" | 400 | 3-105 | |
GD-4.8X430 | 16.9" | 430 | 3-120 | |
GD-4.8X450 | 17.7" | 450 | 3-130 | |
GD-4.8X500 | 19.7" | 500 | 3-150 | |
Tensile Strength:120lbs(55kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-7.2X150 | 6.0" | 150 | 7.2 | 3-35 |
GD-7.2X200 | 8.0" | 200 | 3-50 | |
GD-7.2X250 | 10" | 250 | 4-65 | |
GD-7.2X280 | 11" | 280 | 4-78 | |
GD-7.2X300 | 12" | 300 | 4-80 | |
GD-7.2X350 | 14" | 350 | 4-90 | |
GD-7.2X370 | 14.6" | 370 | 4-98 | |
GD-7.2X380 | 15" | 380 | 4-100 | |
GD-7.2X400 | 16" | 400 | 4-105 | |
GD-7.2X450 | 18" | 450 | 4-110 | |
GD-7.2X500 | 20" | 500 | 4-150 | |
GD-7.2X530 | 20.9" | 530 | 4-160 | |
GD-7.2X550 | 21.6" | 550 | 4-165 | |
Tensile Strength:175lbs(80kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-9.0X400 | 16" | 400 | 9 | 8-105 |
GD-9.0X450 | 18" | 450 | 8-118 | |
GD-9.0X500 | 20" | 500 | 8-150 | |
GD-9.0X550 | 21.6" | 550 | 8-160 | |
GD-9.0X600 | 23.6" | 600 | 8-170 | |
GD-9.0X650 | 25.6" | 650 | 8-185 | |
GD-9.0X720 | 28.3" | 720 | 10-195 | |
GD-9.0X800 | 31.5" | 800 | 10-230 | |
GD-9.0X900 | 35.5" | 900 | 10-265 | |
GD-9.0X1000 | 29.4" | 1000 | 10-300 | |
GD-9.0X1100 | 43.3" | 1100 | 10-335 | |
GD-9.0X1200 | 47.2" | 1200 | 10-370 | |
Tensile Strength:250lbs(114kgs) | ||||
Model | L | W | E | |
ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
GD-12X650 | 25.6" | 650 | 12 | 14-185 |
GD-12X900 | 25.5" | 900 | 14-265 | |
Cable tie width 2.5mm/ 3.6mm/ 4.8mm/ 7.2mm/ 9.0mm/ 12.0mm:
Special packing can be customized(cable ties kit & cable ties set):
PRODUCT PACKING OEM & Logo
Unit Type: bag (100 pieces/bag) Package Size: 54cm x 32cm x 30cm Sticker or label can be added as customer's requirement.
OEM and your logo making is available
PA66 Raw Material Used (Brand: INVISTA）
Workshop, Packing & Shipment:
