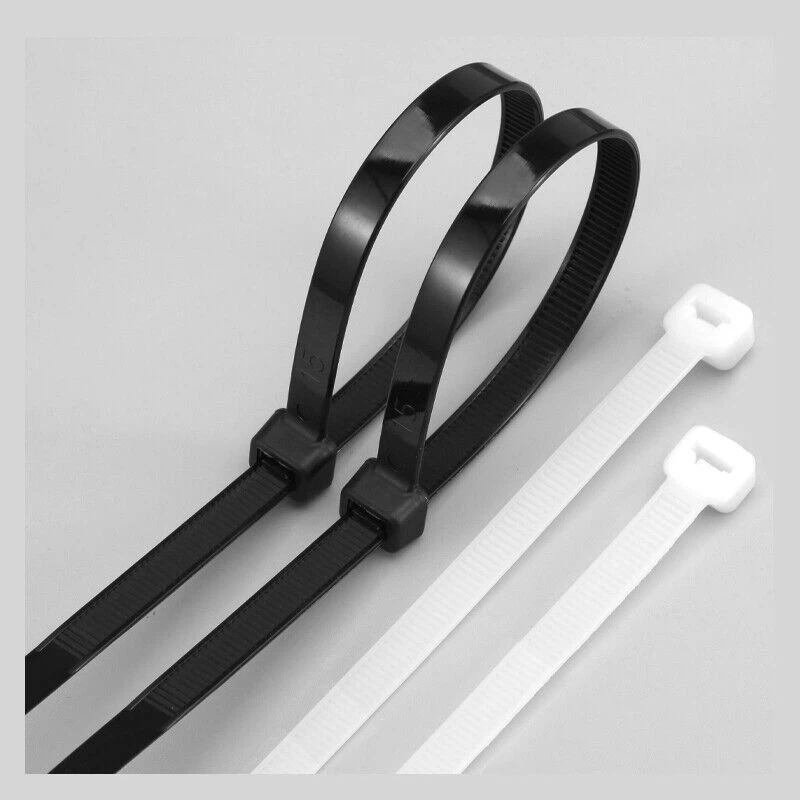

UL 94V-2 Rated Nylon Cable Tie
Our UL 94V-2 Rated Nylon Cable Ties have undergone strict testing and certification by Underwriters Laboratories (UL), a globally recognized safety science organization. The UL 94V-2 rating guarantees that when the cable tie is subjected to a flame for 10 seconds, it will cease burning within 30 seconds after the flame is removed, with no flaming drips that can ignite other materials. This certification is crucial for applications in electrical panels, power distribution systems, and other areas where fire hazards are a concern.
Premium Nylon 6/6 Material
Constructed from high-quality nylon 6/6, these cable ties offer superior tensile strength and impact resistance. Nylon 6/6 is known for its excellent mechanical properties, including high strength, toughness, and resistance to wear and abrasion. It also provides good chemical resistance, making the cable ties suitable for use in environments where they may come into contact with oils, solvents, and other chemicals.
High Tensile Strength
Designed to handle heavy-duty bundling tasks, our UL 94V-2 Rated Nylon Cable Ties boast impressive tensile strength. Depending on the size, they can withstand tensile forces ranging from 175 lbs to 500 lbs, ensuring secure and reliable fastening of cables, wires, and other components. Whether you're bundling thick electrical cables or securing heavy pipes, these cable ties won't let you down.
Wide Operating Temperature Range
These cable ties are designed to perform well in extreme temperature conditions. They can operate within a temperature range of -40°C to 85°C, making them suitable for both indoor and outdoor applications. Whether it's the freezing cold of a winter night or the high temperatures of an industrial facility, our cable ties will maintain their strength and integrity.
FAQ:
What specific tests are included in the UL 94V-2 certification process for these cable ties?
The UL 94V-2 certification involves rigorous flammability testing:
Vertical burning test: Samples are held vertically and exposed to a 10-second flame application (using a 50W burner with a 12mm flame).
Self-extinguishing requirement: The cable tie must stop burning within 30 seconds after the flame is removed.
No flaming drips: Molten material from the tie must not ignite cotton fabric placed 12 inches below the test sample.
Consistency checks: Multiple samples (typically 10) are tested to ensure uniform performance across production batches.
Will custom printing or coloring affect the UL 94V-2 flame resistance rating?
No-our customization processes are engineered to preserve UL 94V-2 compliance:
Printing: Laser etching or low-temperature ink printing is used, which doesn't alter the base material's flame properties.
Coloring: Pigments added for custom colors (e.g., red, blue) are UL-approved and tested to ensure they don't compromise self-extinguishing performance.
Guarantee: All custom orders include a certificate confirming the modified ties retain their UL 94V-2 rating.
Hot Tags: ul 94v-2 rated nylon cable tie, China, suppliers, manufacturers, factory, custom, wholesale, cable tie 2 5x100mm, cable ties 250mm, industrial zip ties, Marker Cable Tie, plastic cable strap, plastic ties lock
| Tensile Strength:50lbs(22kgs) | ||||
| Model | L | W | E | |
| ITEM NO. | INCH | MM | MM | BUNDLE DIAMETER MM |
| GD-4.8X120 | 4.7" | 120 | 4.8 | 3-30 |
| GD-4.8X160 | 6.3" | 160 | 3-40 | |
| GD-4.8X180 | 7.1" | 180 | 3-42 | |
| GD-4.8X190 | 7.5" | 190 | 3-46 | |
| GD-4.8X200 | 8.0" | 200 | 3-50 | |
| GD-4.8X250 | 10" | 250 | 3-65 | |
| GD-4.8X280 | 11" | 280 | 3-70 | |
| GD-4.8X300 | 12" | 300 | 3-80 | |
| GD-4.8X350 | 14" | 350 | 3-90 | |
| GD-4.8X360 | 14.2" | 360 | 3-94 | |
| GD-4.8X370 | 14.6" | 370 | 3-98 | |
| GD-4.8X380 | 15" | 380 | 3-102 | |
| GD-4.8X400 | 16" | 400 | 3-105 | |
| GD-4.8X430 | 16.9" | 430 | 3-120 | |
| GD-4.8X450 | 17.7" | 450 | 3-130 | |
| GD-4.8X500 | 19.7" | 500 | 3-15 | |
