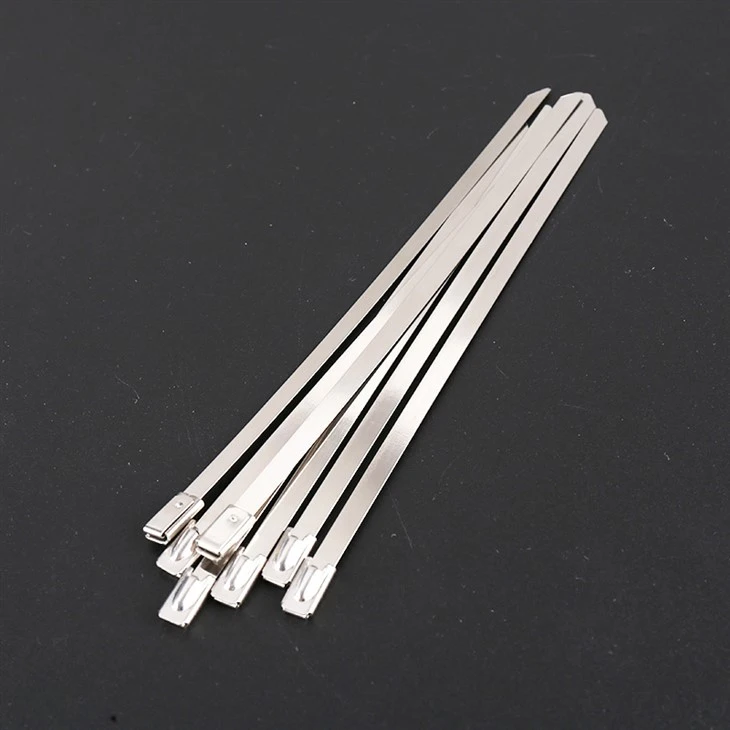

Rust Proof Stainless Steel Cable Tie

Hangzhou Gordon Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of rust proof stainless steel cable tie in China, also supports custom service. Please feel free to wholesale advanced rust proof stainless steel cable tie made in China here from our factory.

Working Principle & Operating Mechanism
The product relies on a pure mechanical one-way self-locking principle, no chemical adhesion, no electronic components, zero failure risk caused by environmental aging, and the working logic is stable and reliable for long-term service.

Tensioning Process
The toothed belt body is inserted through the reserved guide hole of the locking head. The inclined tooth structure on the belt body smoothly pushes away the built-in precision steel ball/elastic locking plate inside the lock head. The unidirectional open guide structure allows the belt body to advance freely with low resistance, and the bundling tightness can be adjusted continuously according to the on-site gap without gear limit dead spots.

Self-Locking & Anti-Slip Principle
When the belt body is subjected to reverse pulling force (vibration displacement, gravity sag, external tension), the tooth groove on the belt body is automatically clamped with the precision locking core inside the lock head. The conical cavity structure inside the lock head makes the steel ball produce wedge self-locking effect under reverse tension. The greater the reverse tension, the tighter the fitting degree of the locking structure, realizing real-time dynamic anti-loosening.

Permanent Rust-Proof & Stable Mechanism
The overall passivation layer of the product isolates the air, salt mist and humid medium, avoids electrochemical corrosion between the locking core, steel ball and belt body, ensures that the locking gap does not produce rust expansion and jamming failure, and maintains consistent locking torque and tensile strength throughout the service cycle.

Stainless Steel Material Options



Both materials provide fire resistance, UV resistance, and long service life.





SUS 316 Stainless Steel

Superior corrosion resistance

Ideal for marine, offshore, chemical, and outdoor environments

Performs well in salt spray and harsh weather conditions





SUS 304 Stainless Steel

Suitable for general industrial and indoor applications

Excellent strength and oxidation resistance

Cost-effective alternative where extreme corrosion is not present

What is the essential difference between passivated rust-proof stainless steel cable ties and ordinary polished stainless steel ties?

Ordinary polished stainless steel ties only remove surface burrs physically, retaining free iron ions, processing residual stress and microporous defects on the metal surface. These defects will cause pitting corrosion and surface rust in salt spray and humid environments within 3-6 months. The rust-proof model adopts neutral passivation process to chemically seal metal micropores, eliminate free iron ions and residual stress, form a stable protective film on the whole structure, and avoid electrochemical corrosion of the locking structure. Its outdoor anti-rust service life is more than 10 times that of ordinary polished models.

How to choose between SS304 and SS316 materials for on-site working conditions?

SS304 passivated ties are applicable to conventional outdoor, municipal, mechanical vibration and general humid environments, meeting most industrial anti-rust and fastening demands with higher cost performance. SS316 passivated ties contain molybdenum elements, which have stronger resistance to chloride ion corrosion, and are mandatory for coastal heavy salt spray, marine engineering, sewage treatment and chemical volatile environments with high chloride content to prevent structural pitting and strength attenuation.
